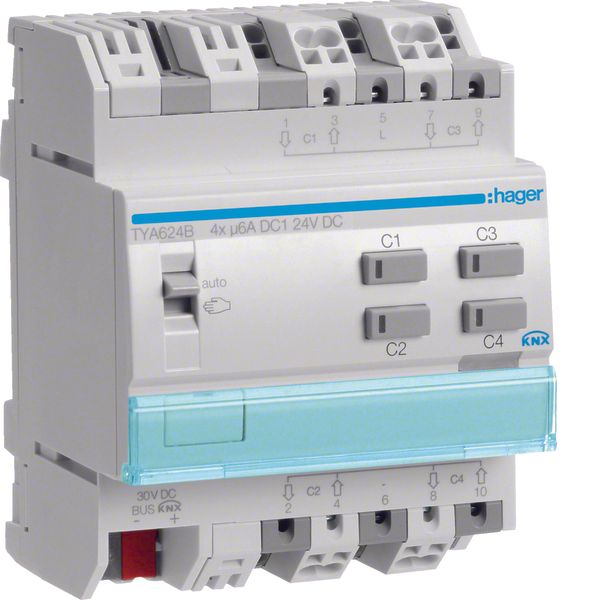

Output device for 4 shutters 24V DC
Order only
Price (excl. VAT):
331,592 €
per pcs
EAN: 3250616059658
MPN: TYA624B
Package: 1
Pallet: 576
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | Output device for 4 shutters 24V DC |
| Brand | Hager |
| Categories |
Bus System Devices (KNX/Modbus)
|
| Harmonized System Code | 8536 5005 00 |
| Mounting method | DRA (DIN-rail adapter) |
| Bus system KNX | Yes |
| Bus system Powernet | No |
| Max. number of venetian-blind outputs | 4 |
| Width in number of modular spacings | 4 |
| Other bus systems | None |
| Local operation/hand operation | Yes |
| With switch function | No |
| With LED indication | Yes |
Packing details
| Packing level 1 | 3250616059658, 3250616059658 |
| Packing level 2 | 3250616059658 |
| Packing level 3 | 3250616059658 |
Other Technical data
| Type of current | DC |
| Number of inputs | 0 |
| Bus system radio frequent | No |
| Max. switching power | 144 W |
| With bus connection | Yes |
| Switching current (resistive) | 6 A |
| Bus system LON | No |
| Degree of protection (IP) | IP20 |
| Bus system KNX radio | No |
| Radio frequent bidirectional | No |
| Bus module detachable | No |
Description
Shutter module 4x 6A /24V DC, KNX
