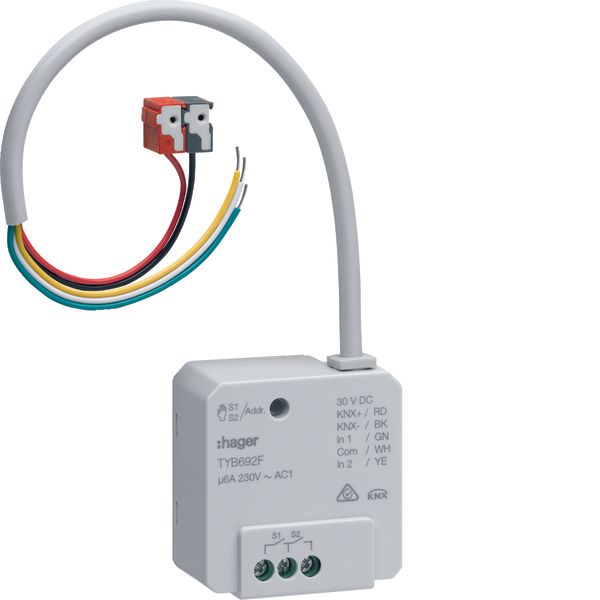

Output 2 fold , Input 2 fold, flush, KNX

Name: Output 2 fold , Input 2 fold, flush, KNX
Brand: Hager
Price: 167.770 EUR
Availability: PreOrder

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

167,77 € per pcs

This price is valid until 24.12.25

EAN: 3250616059399

MPN: TYB692F

Package: 1

Pallet: 1152

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	Output 2 fold , Input 2 fold, flush, KNX
Brand	Hager
Categories	Bus System Devices (KNX/Modbus)
Harmonized System Code	8537 1091 00
Bus system KNX	Yes
With bus connection	Yes
Bus system LON	No
Bus system KNX radio	No
Radio frequent bidirectional	No

Mounting method	Flush mounted (plaster)
Rated current	6 A
Output power	500 W
Rated operating voltage	230 V
Bus system radio frequent	No
Bus system Powernet	No
Max. switching power	1200 W
Max. number of switching contacts	2
Width in number of modular spacings	0
Max. switching current	6 A
Other bus systems	None
Suitable for C-load	No
Different phases connectable	No
Local operation/hand operation	Yes
Degree of protection (IP)	IP20
With LED indication	Yes
Modular expandability	No
Bus module detachable	No
Min. depth of built-in installation box	40 mm

Output module 2x 6A /230V~, 2 inputs, flush mounted, KNX
