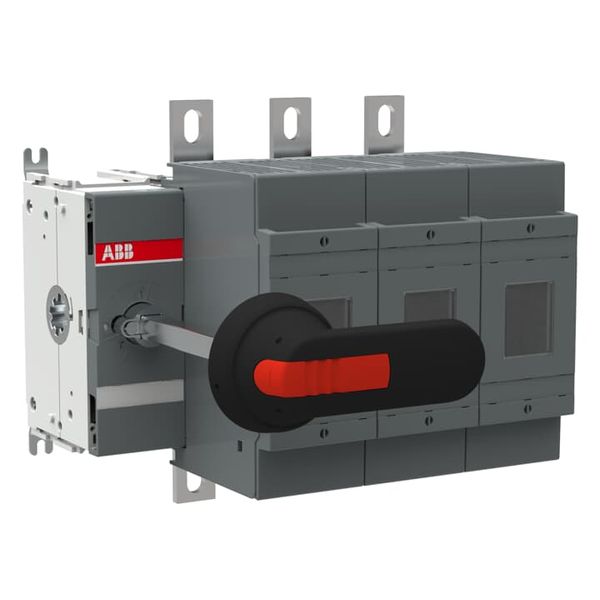

OS160GD22LR-MNS SPECIAL CONNECTED SWITCH FUSE

The OS160GD22LR-MNS is a high-performance 4-pole switch-disconnector fuse unit, engineered for industrial electrical systems requiring reliable load isolation and protection. This device supports a maximum conventional free-air thermal current (Ith) of 160 A at an ambient temperature of 40 °C and operates with DIN-sized NH000 and NH00 fuses. Rated for main circuit operational voltages up to 690 V AC, it provides conditional short-circuit current withstand ratings of up to 100 kA at 500 V or 80 kA at 690 V.



Designed in compliance with IEC 60947-3 standards, the OS160GD22LR-MNS features front operation with left input-right output terminals and includes a switched non-fusible fourth pole. It incorporates lug terminals with tightening torque ranging between 15 N·m and 22 N·m, ensuring secure connections during installation. The base-mounted unit delivers impressive power ratings across various voltage ranges (e.g., up to 132 kW at 690 V), making it suitable for demanding applications such as motor control centers or power distribution panels.



Additional features include two NO auxiliary contacts pre-installed for monitoring purposes, terminal shrouds on the line side for enhanced safety, and an IP20 degree of protection per IEC60529 standards. With compact dimensions (395 mm W x 215 mm H x D) and lightweight construction (2.6 kg net weight), this switch-disconnector fuse balances robust performance with ease of integration into confined spaces within industrial systems.



The OS160GD22LR-MNS adheres to stringent environmental directives including RoHS compliance per EU Directive EN2011/65/EU/A2015/863 guidelines, REACH Declaration reporting, and zero-waste targets certified under UL2799 validation programs—all providing assurance regarding sustainable design credentials.
