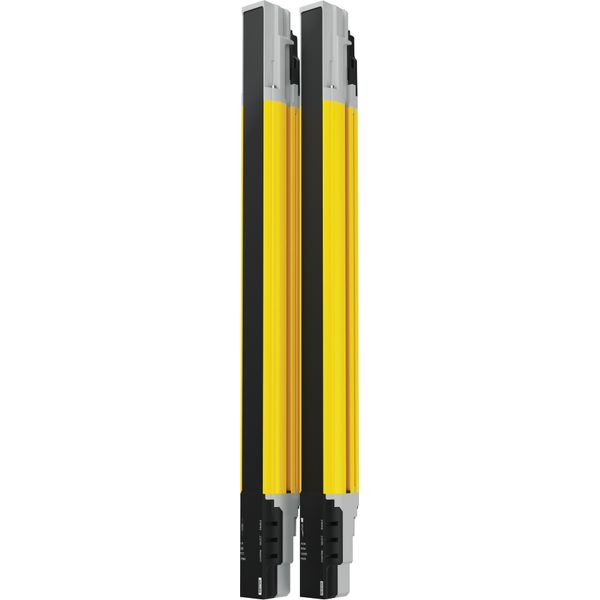

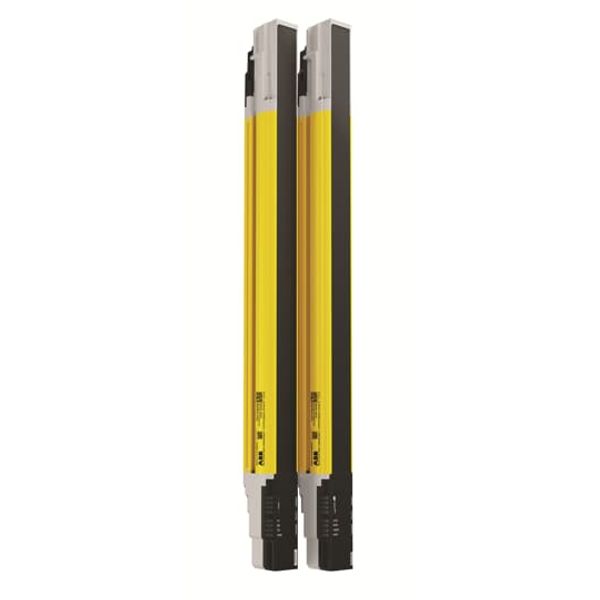

Orion1-4-30-165-E Safety light curtain
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
4 312,94 €
per pcs
EAN: 7350024481716
MPN: 2TLA022303R1000
Package: 1
Box: 10
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | Orion1-4-30-165-E Safety light curtain |
| Brand | ABB |
| Categories |
Photoelectric Sensors
|
| Harmonized System Code | 9031 4990 00 |
| Number of semiconductor outputs with signalling function | 0 |
| Number of contact energized outputs with signalling function | 0 |
| Number of protected semiconductor outputs | 2 |
| Number of protected contact energized outputs | 0 |
| Type of interface for safety communication | Other |
| Type of switching output of the OSSD | Other |
| Type of electric connection | Connector M12 |
| Operation agent-safety class | Safety class 3 |
| Scope of delivery of the one-way system | Transmitter and receiver |
| Max. output current at protected output | 500 mA |
Packing details
| Packing level 1 | 7350024481716 |
| Packing level 2 | 7350024481716 |
Other Technical data
| Voltage type | AC |
| Cascadable | Yes |
| Suitable for safety functions | Yes |
| Ambient temperature | 0-50 °C |
| Fade-out possible | Yes |
| Rated control supply voltage at DC | 24 V |
| Detection capability for test bodies | 30 mm |
| Explosion safety category for gas | None |
| Explosion safety category for dust | None |
| With monitoring function downstream switching devices | Yes |
| With restart blockage | Yes |
| With muting function | Yes |
| Override possible | Yes |
| Response time | 21 ms |
| Reduced resolution | Yes |
| Transmission range of the safety field | 20 m |
| Switching voltage of OSSD at state "high" | 24 V |
| Safety field height | 1650 mm |
| Type of safety according to IEC 61496-1 | 4 |
| With beam coding | Yes |
| Clock control possible | No |
| Wavelength of the sensor | 950 nm |
| Degree of protection (IP) | IP65 |
| Resolution of the light curtain | 30 mm |
| Width sensor | 70 mm |
| Height of sensor | 1.66 mm |
| Length of sensor | 41 mm |
Downloads
Description
Orion1-4-30-150-E Transmitter+ Receiver
