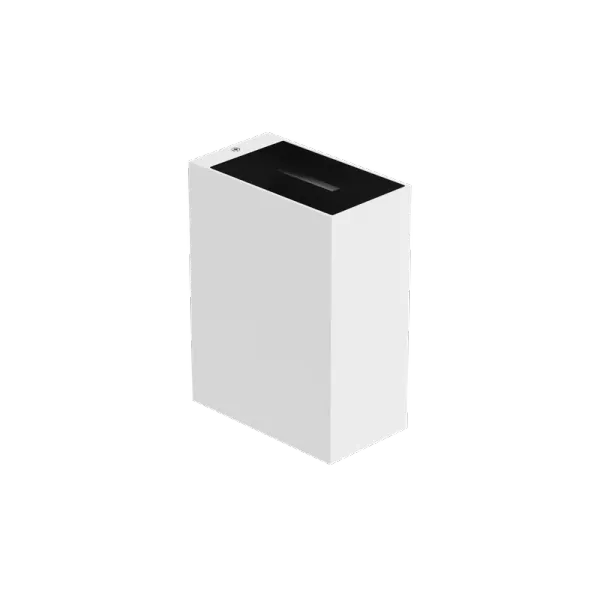

ORION V B NB11 R 840 WIT
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
85,70 €
EAN: 8018367734102
MPN: 3118414
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | ORION V B NB11 R 840 WIT |
| Brand | Performance in Lighting |
| Categories |
Wall and ceiling luminaires
|
| Country of origin | TW |
| Harmonized System Code | 9405 1190 00 |

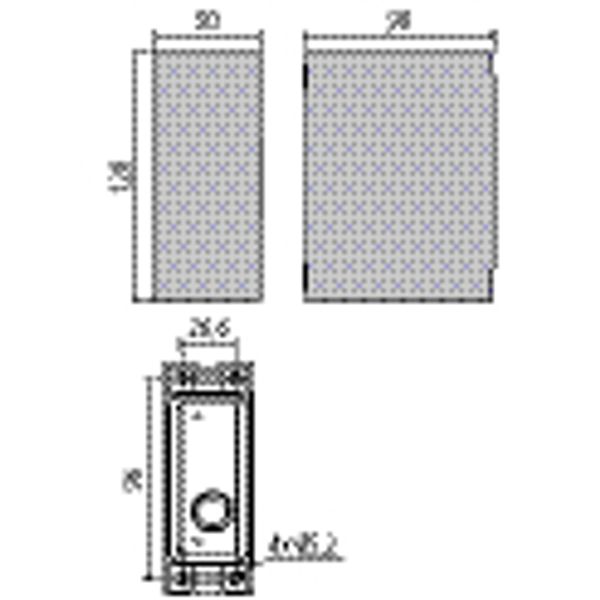

| Width | 90 mm |
| Colour housing | Aluminium |
| Colour rendering index CRI | 80-89 |
| Length | 50 mm |
| Height/depth | 120 mm |
| Lamp type | LED exchangeable |
| Impact strength | IK06 |
| Nominal voltage | 220 V |
| Beam angle | Extreme narrow beam 5-10° |
| Colour temperature | 4000 K |
| Max. system power | 11 W |
Packing details
| Packing level 1 | 8018367734102, 8018367734102 |
Other Technical data
| Protection class | I |
| Lamp holder | Other |
| Conductor cross section | 1.5 mm² |
| Connection type | Screwed terminal |
| Voltage type | AC |
| With movement sensor | No |
| Suitable for lamp power | 11 W |
| Type of grid | Matt |
| Type of control gear | LED operating device current-controlled |
| With light sensor | No |
| Suitable for suspended mounting | No |
| Number of poles | 3 |
| Housing material | Aluminium |
| Suitable for light line configuration | No |
| Suitable for emergency lighting | No |
| Light outlet | Direct |
| Light sharing | Symmetric |
| Material cover | Other |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Covering of the luminaire with thermally insulating material possible | No |
| Suitable for number of lamps | 1 |
| Suitable for built-in mounting | No |
| With control gear | Yes |
| Suitable for workplace according to EN 12464-1 | No |
| Suitable for surface mounting | No |
| Colour of light | White |
| With air slots | No |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Type of wiring | Ending |
| Photobiological safety according to EN 62471 | RG1 |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Touch and Dim | Yes |
| Dimming Zigbee | Yes |
| Dimming with push-button | Yes |
| Light distributor | Diffuser lens/optic/panel |
| Dimming DSI | No |
| Operation by Bluetooth | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Max. number of luminaires per miniature circuit breaker C16 | 106 |
| Max. number of luminaires per miniature circuit breaker B16 | 66 |
| Dimming DALI-2 | No |
| Colour temperature adjustable | No |
| Luminous flux adjustable | No |
| Beam angle adjustable | No |
| Exchangeable control gear | No |
| Suitable for ceiling mounting | No |
| Surface protection housing | Powder coating |
| Power factor | 0.9 |
Downloads
Description
LED-armatuur voor aan de wand, bestaande uit: Behuizing van gelakt spuitgietaluminium, kleine afmetingen. Afscherming van vlak, gehard, extrahelder glas, aan de binnenkant bedrukt. Aluminium reflector. Pakking in slijtvast siliconen. LED module voor netspanning 220-240V 50/60Hz beschermd tegen overbelasting tot 500 V. Schroeven van roestvrij staal.
