ORION POST 260 5.5 S/EW 3000K ANTHRACITE
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
Price by request
EAN: 8018367694727
MPN: 3106841
Package: 1
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | ORION POST 260 5.5 S/EW 3000K ANTHRACITE |
| Brand | Performance in Lighting |
| Categories |
Street and park luminaires
|
| Country of origin | IT |
| Harmonized System Code | 9405 4239 00 |

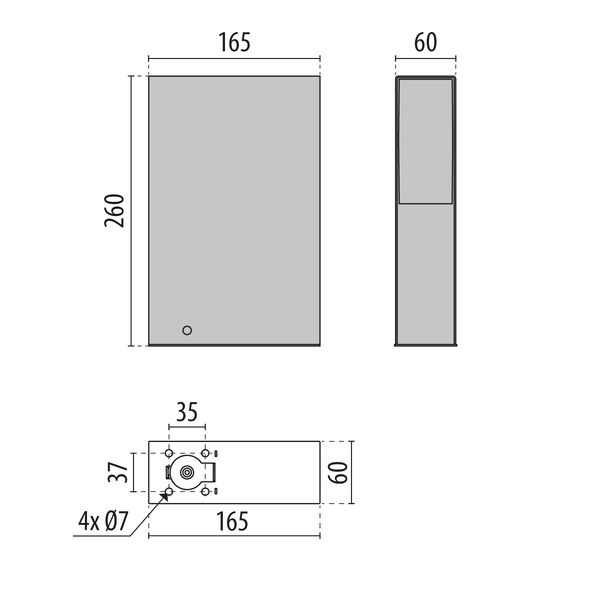

| Width | 60 mm |
| Colour rendering index CRI | 80-89 |
| Length | 165 mm |
| Height/depth | 260 mm |
| Lamp type | LED not exchangeable |
| Impact strength | IK08 |
| Nominal voltage | 220 V |
| Degree of protection (IP) | IP65 |
| Beam angle | Other |
| Colour temperature | 3000 K |
| Max. system power | 5.5 W |
Packing details
| Packing level 1 | 8018367694727, 8018367694727 |
Other Technical data
| Protection class | I |
| Lamp holder | None |
| Conductor cross section | 2.5 mm² |
| With base plate | Yes |
| Connection type | Push-in clamp |
| Colour housing | Anthracite |
| Surface protection | Powder coating |
| Voltage type | AC |
| With movement sensor | No |
| Type of control gear | LED operating device current-controlled |
| With light sensor | No |
| Number of poles | 3 |
| Housing material | Aluminium |
| Type of luminaire | Bollard luminaire |
| Light outlet | Direct |

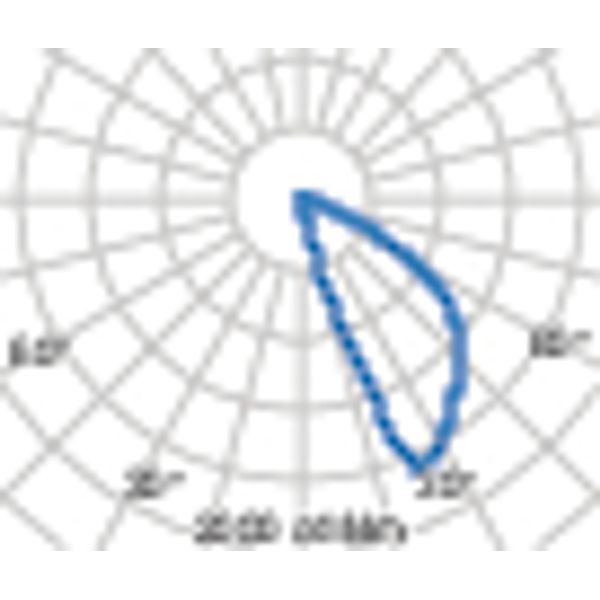

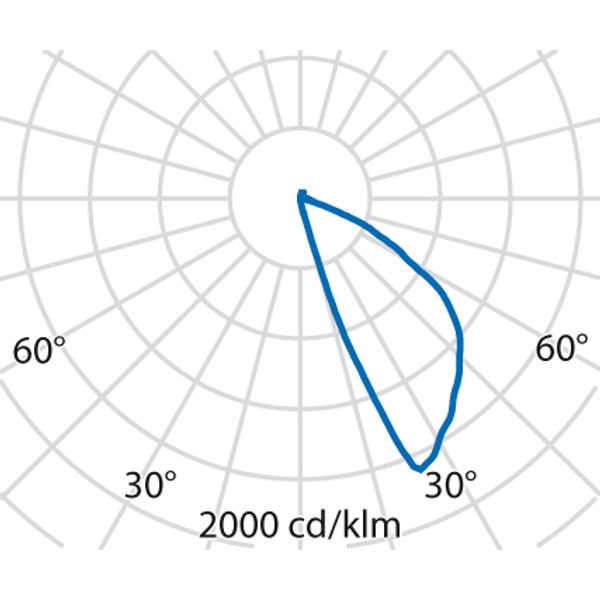

| Light sharing | Asymmetric |
| Material cover | Glass opal |
| With light source | Yes |
| Suitable for number of lamps | 1 |
| With control gear | Yes |
| Nominal current | 16 |
| Colour of light | White |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Type of wiring | Ending |
| Light distributor | Diffuser lens/optic/panel |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Max. number of luminaires per miniature circuit breaker C16 | 185 |
| Max. number of luminaires per miniature circuit breaker B16 | 116 |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 48.8 % |
| Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq) | 23.2 % |
| Colour temperature adjustable | No |
| Luminous flux adjustable | No |
| Beam angle adjustable | No |
| Exchangeable control gear | No |
| Housing material quality | Other |
Downloads
Description
LED bollard bestaande uit: Behuizing van gepoedercoat spuitgietaluminium. Afscherming van vlak, gehard, extrahelder glas, aan de binnenkant bedrukt. LED moduul voor netspanning 220-240V 50/60Hz beschermd tegen overbelasting tot 500 V. Aluminium reflector. Siliconenpakking. Mast van gelakt geëxtrudeerd aluminium. Gelakt RVS armatuur voor Orion Post 260 versies. Bodemplaat meegeleverd. Externe elektrische aansluiting met een waterdichte bollard, compleet met kabel.
