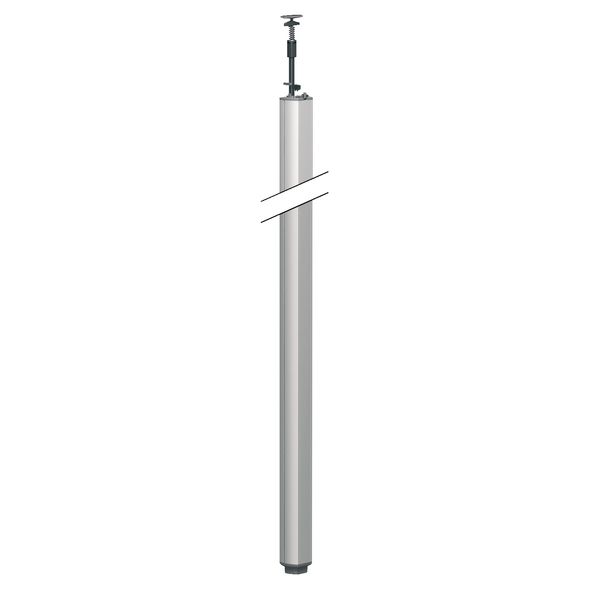

OptiLine 45 - pole - tension-mounted - one-sided - natural - 3100-3500 mm
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
315,26 €
EAN: 3606480029585
MPN: ISM20102
Package: 1
Pallet: 28
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | OptiLine 45 - pole - tension-mounted - one-sided - natural - 3100-3500 mm |
| Brand | Schneider Electric |
| Categories |
Installation Columns
|
| Country of origin | DK |
| Model | Single-sided |
| Diameter | 0 mm |
| Adjustable | Yes |
| Number of usable covers | 1 |
| Column height | 3100-3500 mm |
| Pillar shape | Oval |
| Prewired | No |
| Column depth | 68 mm |
| Column width | 89 mm |
Packing details
| Packing level 1 | 3606480029585 |
| Packing level 2 | 3606480029585 |
Other Technical data
| Cable entry | Top/bottom |
| Type of fastening | Telescope |
| Number of partitions | 1 |
| Useful cross section | 442 mm² |
| Cover width | 45 mm |
| Material installation column | Aluminium |
| Material cover | Aluminium |
| Through-going profile | Yes |
| Place variable | No |
| Surface protection column | Anodised |
| Colour cover | Aluminium |
| Height levelling | 400 mm |
| Colour column | Other |
| Cover surface | Anodised |
| RAL-number column | 0 |
| RAL-number cover | 0 |
| Material installation column halogen free | Yes |
| Material cover halogen free | Yes |
| Material quality installation column | Other |
| Material quality cover | Other |
| Cover depth | 0 mm |
| Suitable for ceiling mounting | Yes |
| Suitable for floor mounting | Yes |
Downloads
ECOP (Environmental Code of Practice)
Declaration DOC CE (Declaration of conformity CE)
Declaration EPD (Environmental Product Declaration)
Instructions for use
Description
Schneider Electric OptiLine 45 ISM20102 is an empty pole in color natural. This is a one-sided pole with an anodized surface finish. It has an oval shape and it has an adjustability of ceiling fixing of 400 mm. The pole is made of aluminium, making it as resistant as possible. This pole comes with a closed cover. This pole has an useful cross section of 442 mm² and 1 compartment partitioning. It is 68 mm in width, 89 mm in depth, and from 3100mm to 3500 mm in height. This product is sold in set of 1 piece. It has an IP30 protection degree. As a green premium product, this device is environmentally friendly as well. And it is mercury free. What's more, it well satisfied the standard of 73/23/EEC, 93/68/EEC, EN 50085-1, EN 60598-2-2, IEC 1084-2-4, NF C 68-102, SS 424 10 32. The Unica System+ range was designed with such flexibility in mind. All devices are easy to install as well as to dismount.
