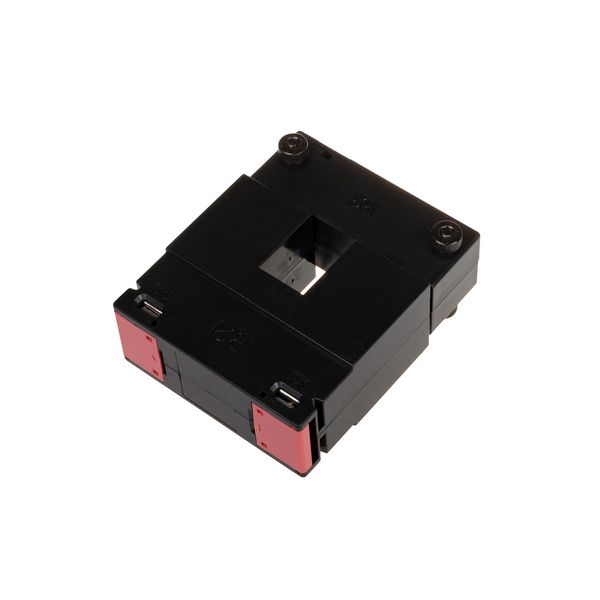

Open-core current transformer 200-5A class 0.5; TO-200-5 image 1

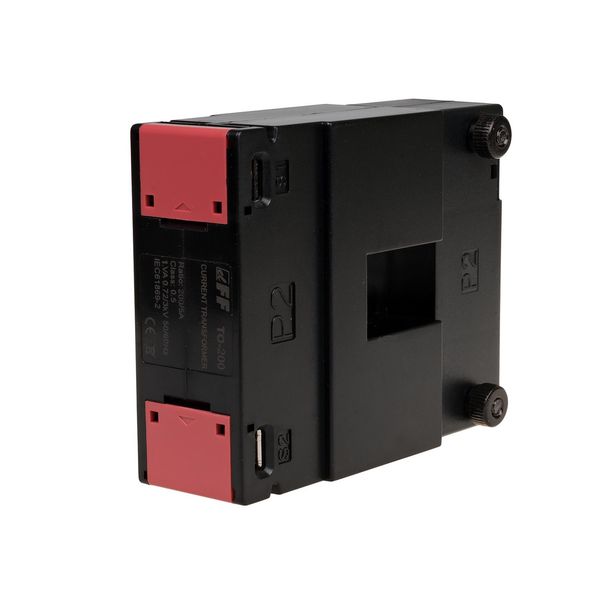

Open-core current transformer 200-5A class 0.5; TO-200-5 image 2

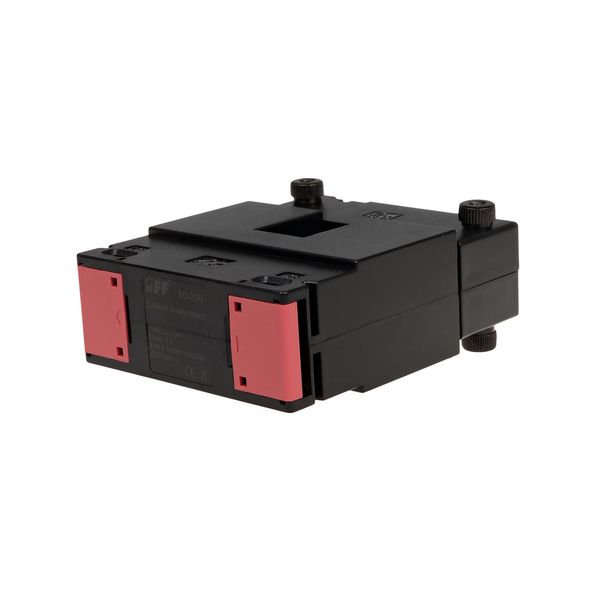

Open-core current transformer 200-5A class 0.5; TO-200-5 image 3
Open-core current transformer 200-5A class 0.5; TO-200-5 image 4
Open-core current transformer 200-5A class 0.5; TO-200-5 thumbnail 1
Open-core current transformer 200-5A class 0.5; TO-200-5 thumbnail 2
Open-core current transformer 200-5A class 0.5; TO-200-5 thumbnail 3
Open-core current transformer 200-5A class 0.5; TO-200-5 thumbnail 4
F&F

Open-core current transformer 200-5A class 0.5; TO-200-5

In stock: No Vendor stock: No Minimal order quantity: 1
Price (excl. VAT):
73,30 €
This price is valid until 24.12.25
EAN: 5908312590859
MPN: TO-200-5
Package: 1
Estimate delivery time at our warehouse (approx.): 2-3 weeks

Technical Information

Item condition New
Manufacture name Open-core current transformer 200-5A class 0.5; TO-200-5
Brand F&F
Categories Measurement Transformers
Country of origin PL
Harmonized System Code 8504 3129 00
Model Through-feed current converter
Primary rated current 200 A
Secondary rated apparent power 1.5 VA
Secondary rated current 5 A
Overcurrent limiting factor FS 5
Accuracy class 0.5

Packing details

Packing level 1 5908312590859

Other Technical data

Number of primary inputs 1
With copper rail No
Snap mounting No
With shock protection Yes
Calibrated No
Secondary connection Screw connection

Downloads

Supplier's declaration for products having preferential origin status Deep link REACH Declaration RoHS Instructions for use

Description

Prąd wtórny 5A ; 0,66kV AC, 3kV/1min. ; FS=8 Przekładnik prądowy służy do proporcjonalnej zmiany dużych natężeń prądu na niższe wartości, przystosowane do zakresów pomiarowych urządzeń kontrolnych i pomiarowych.
