OpDAT REGpro blister 6xLC-D OS2
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
176,32 €
EAN: 4251394638607
MPN: 15024A974060E
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | OpDAT REGpro blister 6xLC-D OS2 |
| Brand | METZ CONNECT |
| Categories |
Patch Panels and Data Connection Boxes
|
| Country of origin | DE |
| Harmonized System Code | 8536 7000 00 |
| Fibre type | Single mode |
| With housing | Yes |
| APC-version | No |
| With pigtails | Yes |
| Suitable for number of couplings/adapters | 6 |
| With front plate | Yes |
| With number of couplings/adapters | 6 |
| Fibre class | OS2 |
Packing details
| Packing level 1 | 4251394638607, 4251394638607 |
Other Technical data
| Mounting method | DIN rail (top hat rail) |
| Colour | White |
| Width | 50 mm |
| Height | 137 mm |
| Depth | 134 mm |
| RAL-number | 9010 |
| Number of height units | 3 |
| Type of connector external | LC-Duplex |
| Type of connector interior | LC-Duplex |
Description

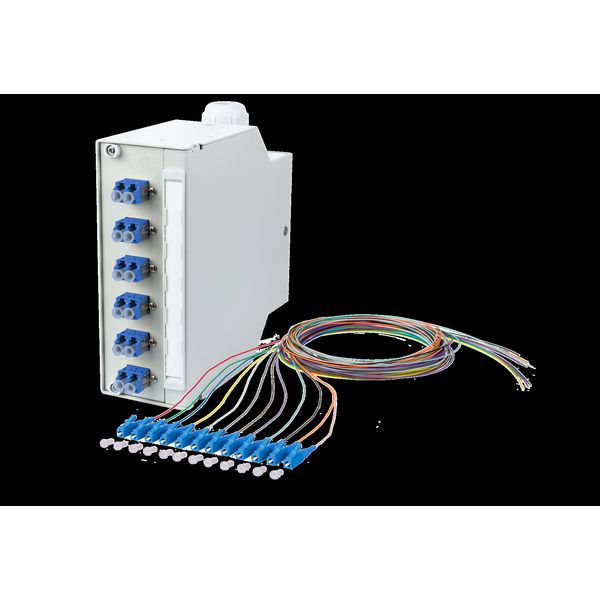

Compact distributor housing for TH35 top hat rail systems, suitable for splicing installation cables, simple handling through single pigtails, equipped with LC-D adapters , Pigtails arranged in blister, pigtails with semi-tight buffered fiber dia. 0.9 mm, 12 colors, secondary and primary coating in the same color, length 2.0 m, Front area with identification strips, Various mounting positions on the top hat rail system possible, Cable insertion from above or below, straight or inclined, suitable for M20 strain relief (up to 2 possible), one cable gland M20 with strain relief included in the delivery, unoccupied adapter recesses are closed with blind plugs, Housing made from sheet steel, powder coated (light gray, RAL 7035), variants: equipped with a maximum of 6 LC-D adapters
