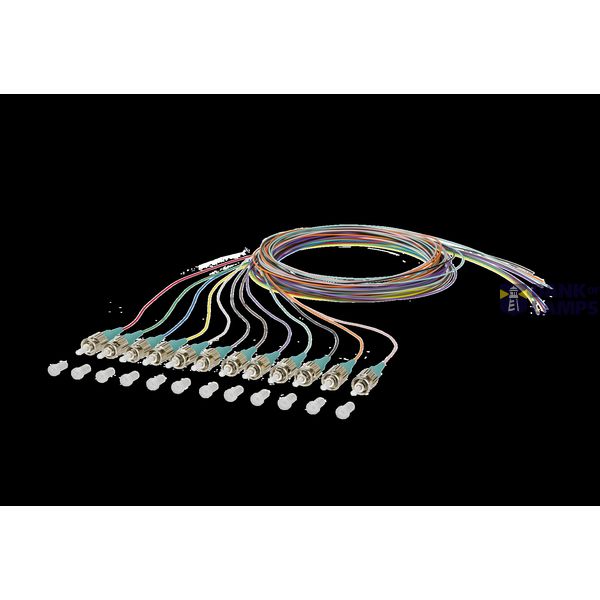

OpDAT pigtail ST-PC, OM3, 12 color

Order only Not Available

Technical Information

Item condition	New
Manufacture name	OpDAT pigtail ST-PC, OM3, 12 color
Brand	METZ CONNECT
Country of origin*	TW
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8544 7000 00
ETIM	EC000748
Fibre type	Multi mode 50/125
Type	Conductor pigtail
Length	2 m
Category	OM3
Core type	Semi tight
Type of connector	ST

Packing details

Packing level 1	4250184116301
Packing level 2	4250184116301

Other Technical data

Colour	Set with several colours
APC-version	No
Anti-kink sleeve	Put-on

Description

ST plug according to IEC 61754-2, Multi mode fiber OM3, G50/125 µm according to IEC 60793-2-10 type A1a.2, Compact loose tube fiber with dia. 0.9 mm, length 2.0 m, Color sequence in sets according to IEC 60304: red, green, blue, yellow, white, gray, brown, violet, turquois, black, orange, pink. Secondary and primary coating same color, Plug connector mounted on one side, With test report, insertion loss and return loss tested at 100 %, all available variants can be created with the cable configurator
