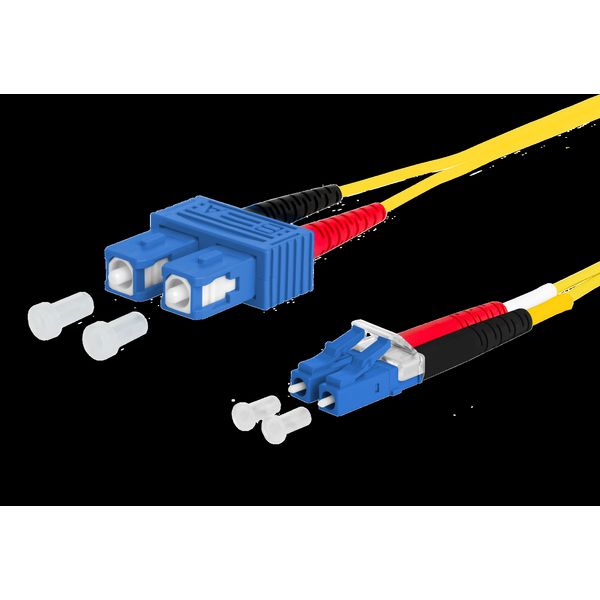

OpDAT patch cord SC-D/LC-D OS2, 15.0 m
Order only
Price (excl. VAT):
23,98 €
EAN: 4250184189688
MPN: 151P1EOJOA5E
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | OpDAT patch cord SC-D/LC-D OS2, 15.0 m |
| Brand | METZ CONNECT |
| Categories |
Fibre optic cables
|
| Country of origin | TW |
| Harmonized System Code | 8544 7000 00 |
| Fibre type | Single mode |
| Cable type | Duplex |
| Number of fibres | 2 |
| Length | 15 m |
| Colour outer sheath | Yellow |
| Category | OS2 |
| Anti-kink sleeve | Put-on |
| Type of connector connection 1 | SC duplex |
| Type of connector connection 2 | LC-Duplex |
| Outer diameter sheath single fibre | 2 mm |
| APC-version connection 1 | No |
| APC-version connection 2 | No |
Packing details
| Packing level 1 | 4250184189688, 4250184189688 |
Description
Single mode patch cord I-V(ZN)H E9/125 OS2, single mode fiber OS2, E9/125 µm, bend insensitive according to IEC 60793-2-50 type B6_a and B6_b and G.657.A2 and B2, compatible to G.652.D, outer diameter 2.0 x 4.2 mm, halogen-free LSHF-FR sheath with low smoke development, flame retardant, duplex cord as zip-cord (figure 8) with two tight buffered fibers and aramide strain relief, 100 % tested, maximum length: 20 m, all available variants can be created with the cable configurator
