OpDAT MV 9xLC-D APC OS2 VIK IP54
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | OpDAT MV 9xLC-D APC OS2 VIK IP54 |
| Brand | METZ CONNECT |
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 7000 00 |
| ETIM | EC001130 |
| With housing | Yes |
| APC-version | Yes |
| With pigtails | No |
| Suitable for number of couplings/adapters | 9 |
| With front plate | Yes |
| With number of couplings/adapters | 9 |
| Fibre class | OS2 |
Packing details
| Packing level 1 | 4251394669519, 4251394669519 |
Other Technical data
| Mounting method | Wall mounting |
| Colour | White |
| Width | 302.5 mm |
| Height | 360 mm |
| Depth | 87.5 mm |
| RAL-number | 9010 |
| Type of connector external | LC-Duplex |
| Type of connector interior | LC-Duplex |
Description

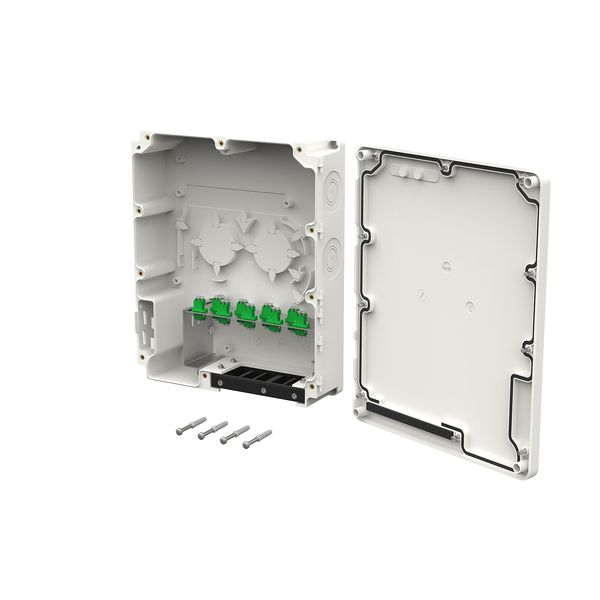

Surface-mounted housing for installation and distribution of pre-assembled fibre optic installation cables, equipped with a patch panel with 9xLC-D (green) couplings, 2 separately lockable doors to separate the installer- and user sides, protection class: IP54, good access possibilities and simple installation, the housings can be side by side for larger capacities, cable entries: 12x M12/M16; 2x M20 and M25, slotted foam as a flexible cable outlet, sealable, compact, plain design, dimensions (L x W x H): 87.5 x 302.5 x 360.0 mm
