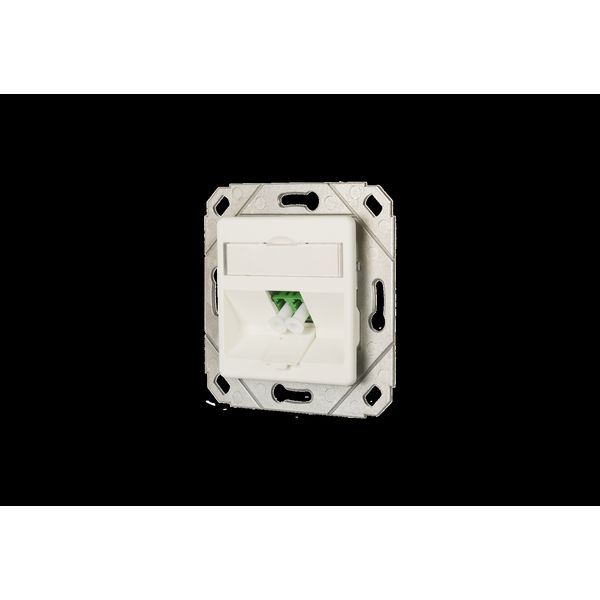

OpDAT flush mounted trunking installation 1xLC-D SM APC (ceramic) pure
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
13,80 €
EAN: 4250184180098
MPN: 1501207K1K-E
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | OpDAT flush mounted trunking installation 1xLC-D SM APC (ceramic) pure |
| Brand | METZ CONNECT |
| Categories |
Fibre Optics and Accessories
|
| Country of origin | DE |
| Harmonized System Code | 8536 7000 00 |
| Colour | White |
| Duct installation | Yes |
| Type of fastening | Screw |
| Type of connector | LC-Duplex |
| Floor box/sub-floor mounted | No |
| Surface mounting | No |
| Flush-mounted installation | No |
Packing details
| Packing level 1 | 4250184180098, 4250184180098 |
Other Technical data
| RAL-number | 9010 |
| Outlet direction | Angled |
| Centre plate | Yes |
| With bus/coupling | Yes |
| Dust protection cap | Shutter |
| Cable strain relief | Yes |
| With label space | Yes |
| With cover frame | No |
| Number of buses/couplings | 1 |
| Wire stock | No |
| Device width | 80.5 mm |
| Device height | 80.5 mm |
| Device depth | 41 mm |
Description
Raceway termination unit, equipped with OpDAT modul LC-D SM APC adapter (green) with adapter, slotted ceramic sleeve, service life min. 1000 mating cycles, module plug direction 45° downwards, strain relief of the Kevlar by screw at the module frame, velcro tape to bundle the fiber reserve, with label window for enclosed identification labels, label sheet 209 x 294 mm see accessories, integrated dust protection covers (also colored), cover parts in pure white RAL 9010, surface with matt finish, compatible with design central units of switch lines
