METZ CONNECT

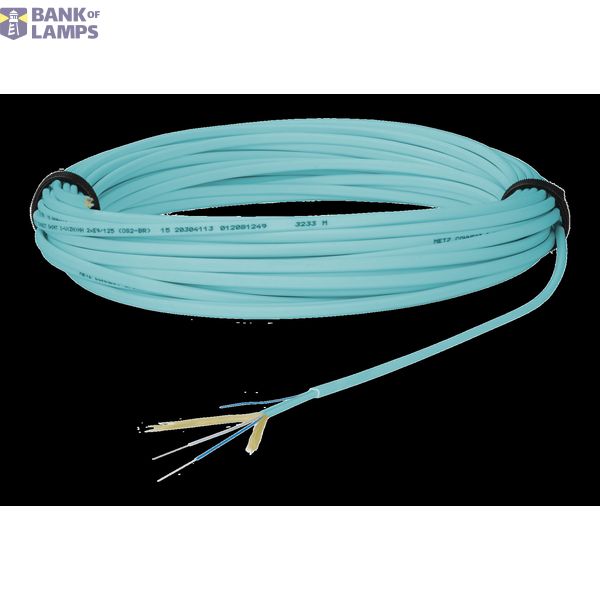

OpDAT connection cable 2x1 OM3 class Dca 20.0 m

Name: OpDAT connection cable 2x1 OM3 class Dca 20.0 m
Brand: METZ CONNECT
Availability: PreOrder

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	OpDAT connection cable 2x1 OM3 class Dca 20.0 m
Brand	METZ CONNECT
Country of origin*	DK
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8536 7000 00
ETIM	EC001263
Fibre type	Multi mode 50/125
Cable type	Breakout
Number of fibres	2
Length	20 m
Colour outer sheath	Turquoise
Category	OM3
Anti-kink sleeve	None
Outer diameter sheath single fibre	2 mm
APC-version connection 1	No
APC-version connection 2	No

Packing details

Packing level 1

4251394654133, 4251394654133

Description

Connecting cable I-V(ZN)HH, breakout cable for direct connector assembly for indoor use, bend insensitive fiber, cable sheath: LSHF-FR, UV-resistant, metal-free, longitudinally watertight, cable construction: two 2 mm separately strain-relieved cables under a common cable jacket, each cable with 900 µm tight buffer, tension relief: aramide, applicable standards: EN 50173-1, ISO 11801 2nd edition, IEC 60794-2, IEC 60794-2-10, EN 187000, fire behavior: class Dca s1 d1 a1 according to EN 50399 (classification according to EN 13501-6), variants fiber types: OS2, OM5, OM4, OM3, each possible for 20 m as cable ring, 50 m on cardboard drum and 100 m on cardboard drum
