OpDAT CM 6xLC-D OM4 splice
Order only
Price (excl. VAT):
144,92 €
EAN: 4250184199885
MPN: 1528S775061E
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | OpDAT CM 6xLC-D OM4 splice |
| Brand | METZ CONNECT |
| Categories |
Patch Panels and Data Connection Boxes
|
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 7000 00 |
| Fibre type | Multi mode 50/125 |
| With housing | No |
| APC-version | No |
| With pigtails | Yes |
| Suitable for number of couplings/adapters | 6 |
| With front plate | Yes |
| With number of couplings/adapters | 6 |
| Fibre class | OM4 |
| Suitable for number of module inserts | 6 |
Packing details
| Packing level 1 | 4250184199885, 4250184199885 |
Other Technical data
| Mounting method | 482.6 mm (19 inch) mounting |
| Colour | Silver |
| Width | 35.3 mm |
| Height | 128.9 mm |
| Depth | 240 mm |
| Number of height units | 3 |
| Type of connector external | LC-Duplex |
| Type of connector interior | LC-Duplex |
Description

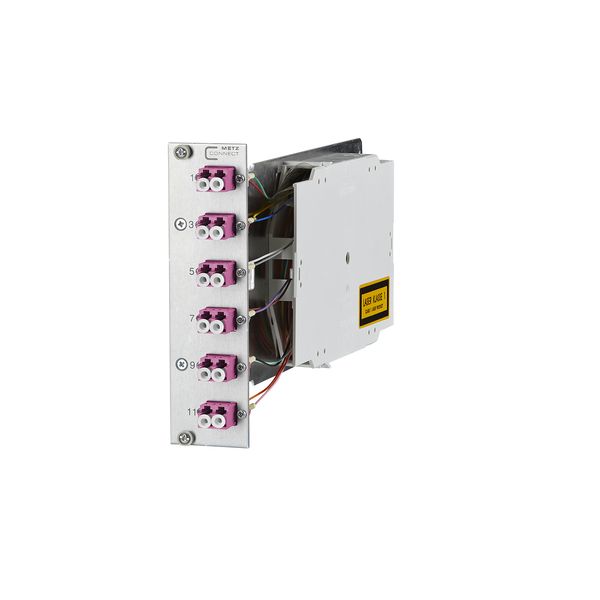

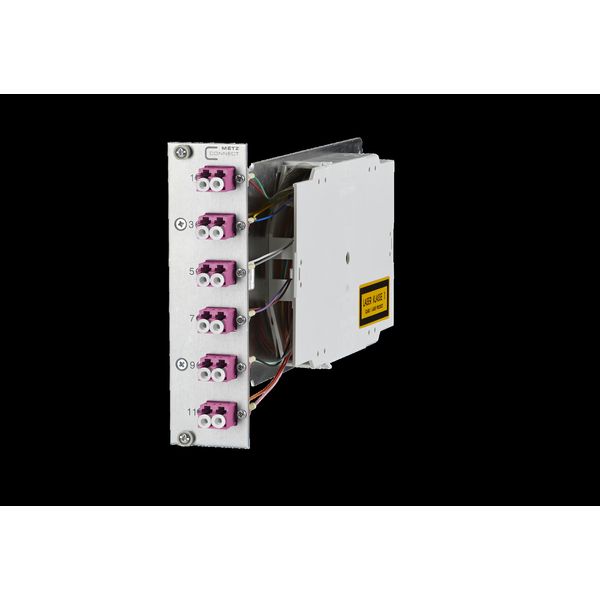

Compact module OpDAT CM 6xLC-D 3RU/HP, Fully equipped with 6 LC-D adapters and 12 LC pigtails, Pigtails with semi-tight buffered fiber dia. 0.9 mm, length 2.0 m, 12 colors , Pigtails inserted and stripped in standard splice tray with crimp splice holder , Pigtails are cleaned and inserted into the adapters , Front panel made of silver anodized aluminum, with numbered adapter positions, Mounting plate made of steel, equipped with splice tray and overlength tray, each with a cover, Fixing in the subassembly frame by captive screws , Variants: equipped with LC-D adapters each blue (OS2), green (OS2 APC), lime green (OM5), violet (OM4) or aqua (OM3)
