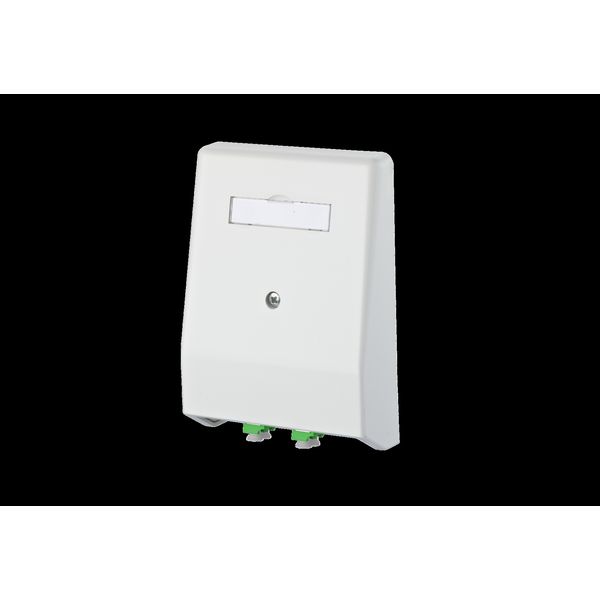

OpDAT 4 UP 2xLC-D APC OS2
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
23,41 €
EAN: 4251394609263
MPN: 1501107602-E
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | OpDAT 4 UP 2xLC-D APC OS2 |
| Brand | METZ CONNECT |
| Categories |
Fibre Optics and Accessories
|
| Country of origin | DE |
| Harmonized System Code | 8536 7000 00 |
| Colour | White |
| Duct installation | No |
| Type of fastening | Screw |
| Type of connector | LC-Duplex |
| Floor box/sub-floor mounted | No |
| Surface mounting | No |
| Flush-mounted installation | Yes |
Packing details
| Packing level 1 | 4251394609263, 4251394609263 |
Other Technical data
| RAL-number | 9010 |
| Outlet direction | Angled |
| Centre plate | No |
| With bus/coupling | Yes |
| Dust protection cap | None |
| Cable strain relief | Yes |
| With label space | Yes |
| With cover frame | Yes |
| Number of buses/couplings | 2 |
| Wire stock | Yes |
| Device width | 85 mm |
| Device height | 112 mm |
| Device depth | 27 mm |
Description
Fiber optic termination unit for flush mounting with fiber optic adapters, equipped with 2 LC-D APC adapters, bending radius of approx. 30 mm is met due to integrated cable reservoir, plug direction 10° downwards, strain relief with cable ties possible, with label window for enclosed identification labels, suitable for preassembled cables and on-site assembly of plugs, for mini breakout cables, cover parts in pure white RAL 9010, variants: 2 LC-D, 2 SC-D, 4 ST
