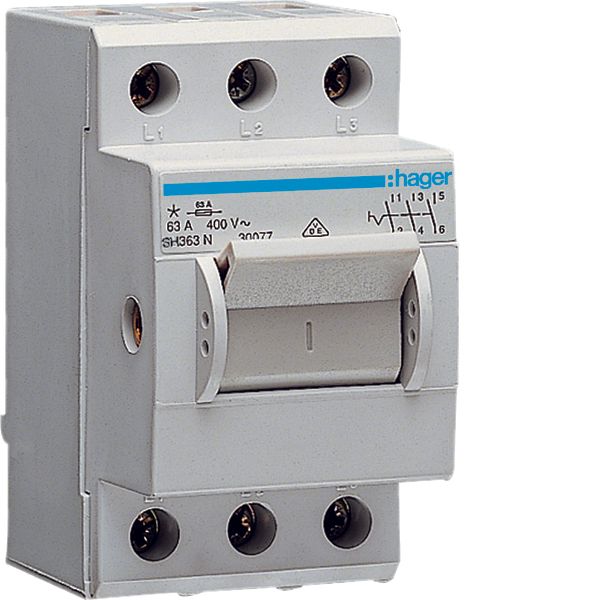

One piece switch 3x63A
Order only
Price (excl. VAT):
24,154 €
per pcs
EAN: 3250615589989
MPN: SH363N
Package: 1
Pallet: 1152
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | One piece switch 3x63A |
| Brand | Hager |
| Categories |
Main Switches
|
| Country of origin* | CN |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 5080 00 |
| Voltage type | AC |
| Switching function | Off switch |
| Rated current | 63 A |
| Rated voltage | 400 V |
| Number of poles | 3 |
| Degree of protection (IP) | IP20 |
Packing details
| Packing level 1 | 3250615589989, 3250615589989 |
| Packing level 2 | 3250615589989 |
| Packing level 3 | 3250615589989 |
Other Technical data
| With signal lamp | No |
| Built-in depth | 65 mm |
| Max. lamp power | 0 W |
| Short-circuit breaking capacity (Icw) | 5 kA |
| Width in number of modular spacings | 2.5 |
| Min. rated voltage | 400 V |
| Number of contacts as normally closed contact | 0 |
| Number of contacts as normally open contact | 3 |
| Number of contacts as change-over contact | 0 |
| Forced segregation according to DIN VDE 0113 | No |
Description
This component regulates input voltage to maintain output power stability in low-voltage circuits. It ensures continuous operation of sensitive devices by compensating for fluctuations.
### Electrical Specifications
Nominal input voltage range: 4.5V to 18V DC. Output voltage regulation: adjustable between 1.8V-12V DC, with ±2% accuracy under typical conditions. Maximum current capacity: supports up to 3A sustained load at peak efficiency.
### Physical and Thermal Properties
Compact form factor designed for PCB integration—dimensions approximately 25mm x 30mm x 10mm (LxWxH). Passive cooling required; thermal dissipation adequate at ambient temps below ~60°C, but heatsinking or airflow suggested above this threshold during prolonged use.
- Compatible with standard connectors and solder pads; verify pin assignments before installation.
- Not rated for environments exceeding industrial-grade humidity (~85%, non-condensing).
- Efficiency drops off quickly near max rated load (>2.8A), consider alternatives if consistently operating near limit.
