ONDA2 LRO D400 LED1800-840 LDE WH - Circular luminaire
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
682,07 €
EAN: 9010299030009
MPN: 42186628
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | ONDA2 LRO D400 LED1800-840 LDE WH - Circular luminaire |
| Brand | Zumtobel |
| Categories |
Wall and ceiling luminaires
Ceiling mounting lamps Surface mounting lamps |
| Country of origin | RS |
| Harmonized System Code | 9405 1190 00 |
| Colour housing | White |
| Colour rendering index CRI | 80-89 |
| Height/depth | 85 mm |
| Lamp type | LED not exchangeable |
| Impact strength | IK03 |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP20 |
| Beam angle | Extreme wide beam >80° |
| Colour temperature | 4000 K |
| Max. system power | 15.3 W |
| Rated luminous flux according to IEC 62722-2-1 | 1805 lm |
| Luminaire efficacy | 118 lm/W |
Packing details
| Packing level 1 | 9010299030009, 9010299030009 |
Other Technical data
| Protection class | I |
| Outer diameter | 400 mm |
| Lamp holder | Other |
| Conductor cross section | 2.5 mm² |
| Connection type | Push-in clamp |
| Voltage type | AC |
| With movement sensor | No |
| Type of grid | None |
| Type of control gear | LED operating device current-controlled |
| With light sensor | No |
| Suitable for suspended mounting | No |
| Housing material | Aluminium |
| Suitable for light line configuration | No |
| Suitable for emergency lighting | No |
| Light outlet | Direct |
| Light sharing | Symmetric |
| Material cover | Plastic, transparent |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Covering of the luminaire with thermally insulating material possible | No |
| Suitable for number of lamps | 1 |
| Suitable for built-in mounting | No |
| With control gear | Yes |
| Suitable for workplace according to EN 12464-1 | Yes |
| Suitable for surface mounting | Yes |
| Colour of light | White |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Type of wiring | Ending |
| Rated life time L70/B50 at 25 °C | 100000 h |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Filament test according to IEC 60695-2-11 | 650 °C - 30 s |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | Yes |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | Yes |
| No dim function | No |
| Dimming DSI | Yes |
| Unified Glare Ratio (UGR) | 18 |
| Operation by Bluetooth | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Max. number of luminaires per miniature circuit breaker C16 | 58 |
| Max. number of luminaires per miniature circuit breaker B16 | 35 |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 90 % |
| Flickering value Pst LM | 1 |
| Colour temperature adjustable | No |
| Luminous flux adjustable | Continuously variable |
| Beam angle adjustable | No |
| Exchangeable control gear | Yes |
| Suitable for ceiling mounting | Yes |
| Power factor | 0.96 |
Downloads
Description

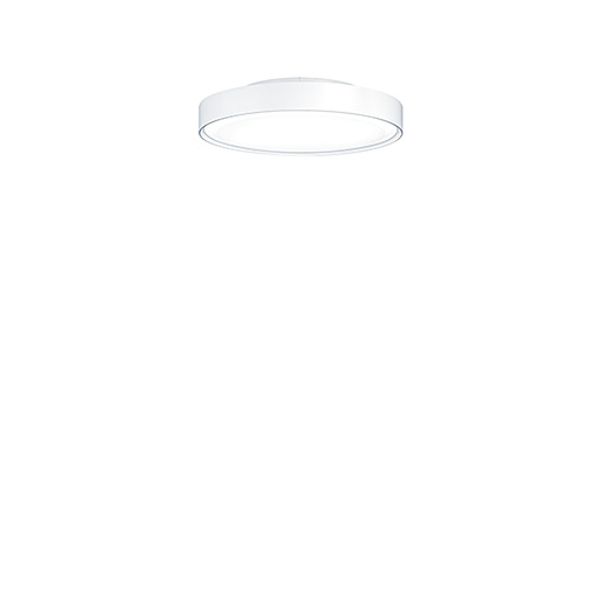

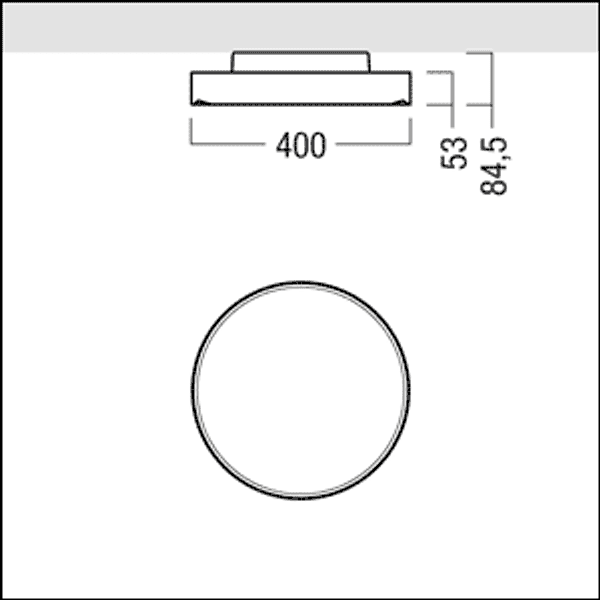

Decorative diffuse LED Circular luminaire with LRO cover for surface-mounting to ceilings/walls and Pendant mounting. Luminaire input power: 15.3 W, DALI controllable luminaire with LED converter; LED service life lasts 50000 h before luminous flux is reduced to 90% of the initial value. Chromaticity tolerance (initial MacAdam): 3. Luminaire luminous flux: 1805 lm, Luminaire efficacy: 118 lm/W. Colour rendering Ra > 80, colour temperature 4000 K. aluminium housing in white enamelled finish. Plastic cover, LRO light reducing optic with UGR<19 in polymethylmethacrylate with frosted surface, fixed to frame. Wall mounting is possible. Low indirect component for ceiling/wall illumination, emphasising the floating appearance. Includes electronic LED converter for DALI control. Luminaire wired with halogen-free leads Dimensions: Ø400 x 85 mm weight: 2.9 kg Impact strength: IK03.
