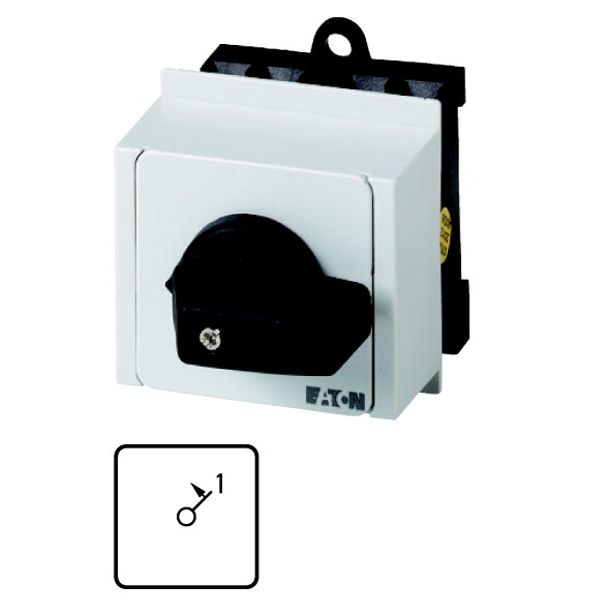

T0-2-15323/IVS On switches, T0, 20 A, service distribution board mounting, 2 contact unit(s), Contacts: 3, Spring-return in position 1, 45 °, momentary, With spring- image 1
T0-2-15323/IVS On switches, T0, 20 A, service distribution board mounting, 2 contact unit(s), Contacts: 3, Spring-return in position 1, 45 °, momentary, With spring- image 2
T0-2-15323/IVS On switches, T0, 20 A, service distribution board mounting, 2 contact unit(s), Contacts: 3, Spring-return in position 1, 45 °, momentary, With spring- image 3
T0-2-15323/IVS On switches, T0, 20 A, service distribution board mounting, 2 contact unit(s), Contacts: 3, Spring-return in position 1, 45 °, momentary, With spring- image 4
T0-2-15323/IVS On switches, T0, 20 A, service distribution board mounting, 2 contact unit(s), Contacts: 3, Spring-return in position 1, 45 °, momentary, With spring- image 5
T0-2-15323/IVS On switches, T0, 20 A, service distribution board mounting, 2 contact unit(s), Contacts: 3, Spring-return in position 1, 45 °, momentary, With spring- image 6
T0-2-15323/IVS On switches, T0, 20 A, service distribution board mounting, 2 contact unit(s), Contacts: 3, Spring-return in position 1, 45 °, momentary, With spring- thumbnail 1
T0-2-15323/IVS On switches, T0, 20 A, service distribution board mounting, 2 contact unit(s), Contacts: 3, Spring-return in position 1, 45 °, momentary, With spring- thumbnail 2
T0-2-15323/IVS On switches, T0, 20 A, service distribution board mounting, 2 contact unit(s), Contacts: 3, Spring-return in position 1, 45 °, momentary, With spring- thumbnail 3
T0-2-15323/IVS On switches, T0, 20 A, service distribution board mounting, 2 contact unit(s), Contacts: 3, Spring-return in position 1, 45 °, momentary, With spring- thumbnail 4
T0-2-15323/IVS On switches, T0, 20 A, service distribution board mounting, 2 contact unit(s), Contacts: 3, Spring-return in position 1, 45 °, momentary, With spring- thumbnail 5
T0-2-15323/IVS On switches, T0, 20 A, service distribution board mounting, 2 contact unit(s), Contacts: 3, Spring-return in position 1, 45 °, momentary, With spring- thumbnail 6
EATON

T0-2-15323/IVS On switches, T0, 20 A, service distribution board mounting, 2 contact unit(s), Contacts: 3, Spring-return in position 1, 45 °, momentary, With spring-

In stock: No Vendor stock: No Minimal order quantity: 1
Price (excl. VAT):
22,91 €
This price is valid until 31.12.25
EAN: 4015080317395
MPN: 031739
Package: 1
Estimate delivery time at our warehouse (approx.): 1-4 weeks

Technical Information

Item condition New
Manufacture name T0-2-15323/IVS On switches, T0, 20 A, service distribution board mounting, 2 contact unit(s), Contacts: 3, Spring-return in position 1, 45 °, momentary, With spring-
Brand EATON
Categories Control Switches
Country of origin GB
Harmonized System Code 8536 5080 00
Number of switch positions 2
Rated permanent current Iu 20 A
Number of poles 3
With zero (off) position No
With retraction in 0-position No
Type of switch On/Off switch
Max. rated operation voltage Ue AC 690 V

Packing details

Packing level 1 4015080317395

Other Technical data

Width in number of modular spacings 4
Degree of protection (IP), front side IP30
Type of control element Toggle
Front shield size 48x48 mm
Suitable for floor mounting Yes
Suitable for front mounting No
Suitable for distribution board installation Yes
Suitable for intermediate mounting No
Complete device in housing No
Device construction Built-in device
Degree of protection (NEMA), front side 2

Description

On switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T0, with black thumb grip and front plate, Contacts: 3, Spring-return: Spring-return in position 1, Degree of Protection: Front IP30, Design: service distribution board mounting, Switching angle: 45 °, Switching performance: momentary, With spring-return from 1, 2 contact unit(s), Rated uninterrupted current: Iu= 20 A, front plate: I<1
