EATON

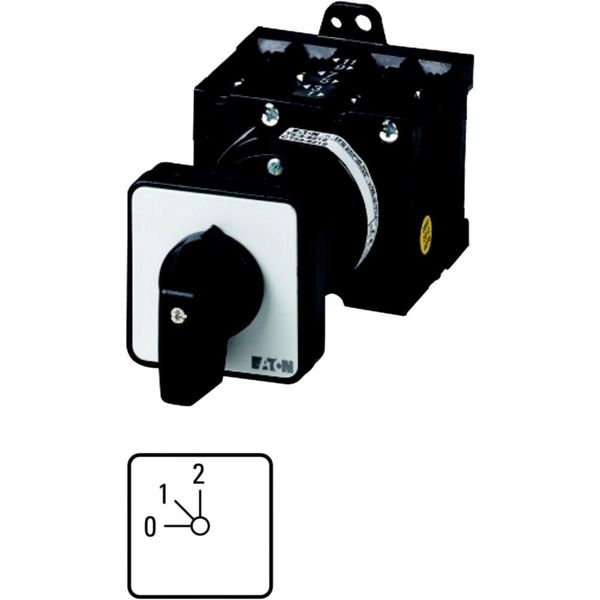

T3-2-8296/Z Changeover switches, T3, 32 A, rear mounting, 2 contact unit(s), Contacts: 4, 45 °, momentary, Without 0 (Off) position, With spring-return to 1, 1

In stock: No Vendor stock: No Minimal order quantity: 1
Price (excl. VAT):
37,67 €
This price is valid until 31.12.25
EAN: 4015080184768
MPN: 018476
Package: 1
Estimate delivery time at our warehouse (approx.): 1-4 weeks

Technical Information

Item condition New
Manufacture name T3-2-8296/Z Changeover switches, T3, 32 A, rear mounting, 2 contact unit(s), Contacts: 4, 45 °, momentary, Without 0 (Off) position, With spring-return to 1, 1
Brand EATON
Categories Control Switches
Country of origin GB
Harmonized System Code 8536 5080 00
Number of switch positions 2
Rated permanent current Iu 32 A
Number of poles 2
With zero (off) position No
With retraction in 0-position No
Type of switch Reverser
Max. rated operation voltage Ue AC 690 V

Packing details

Packing level 1 4015080184768

Other Technical data

Width in number of modular spacings 0
Degree of protection (IP), front side IP65
Type of control element Toggle
Front shield size 48x48 mm
Suitable for floor mounting Yes
Suitable for front mounting No
Suitable for distribution board installation No
Suitable for intermediate mounting Yes
Complete device in housing No
Device construction Built-in device
Degree of protection (NEMA), front side 12

Description

Changeover switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T3, with black thumb grip and front plate, Contacts: 4, Degree of Protection: Front IP65, Design: rear mounting, Switching angle: 45 °, Switching performance: momentary, Without 0 (Off) position, With spring-return to 1, 2 contact unit(s), Rated uninterrupted current: Iu= 32 A, front plate: 1<2
