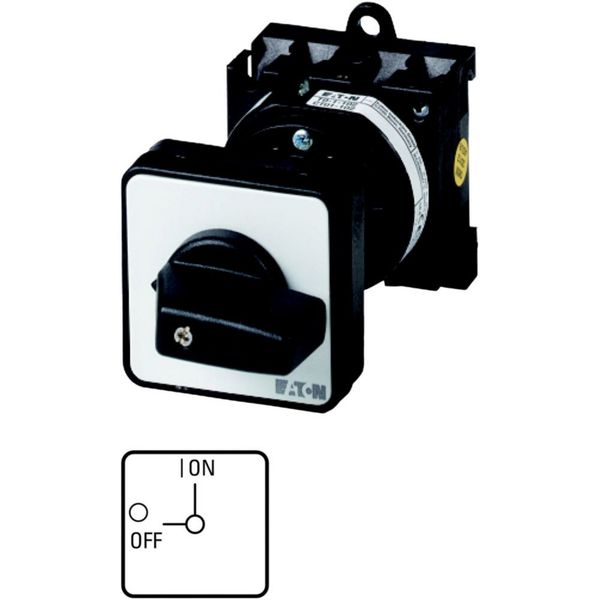

T0-2-10/Z On-Off switch, 3 pole + N, 20 A, 90 °, rear mounting
In stock: Yes
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
24,02 €
EAN: 4015080111108
MPN: 011110
Package: 1
Estimate delivery time at our warehouse (approx.):
1-4 weeks
Technical Information
| Item condition | New |
| Manufacture name | T0-2-10/Z On-Off switch, 3 pole + N, 20 A, 90 °, rear mounting |
| Brand | EATON |
| Categories |
Installation
Switch Disconnectors (AC) |
| Country of origin | GB |
| Harmonized System Code | 8536 5080 00 |
| Rated permanent current Iu | 20 A |
| Number of poles | 4 |
| Rated operating voltage | 690 V |
| Degree of protection (IP), front side | IP65 |
| Version as main switch | No |
| Version as safety switch | No |
| Version as maintenance-/service switch | No |
| Rated short-time withstand current lcw | 0.32 kA |
Packing details
| Packing level 1 | 4015080111108 |
Other Technical data
| Width | 48 |
| Height | 48 |
| Depth | 128 |
| Rated operation power at AC-3, 400 V | 5.5 kW |
| Number of auxiliary contacts as normally open contact | 0 |
| Number of auxiliary contacts as normally closed contact | 0 |
| Conditioned rated short-circuit current Iq | 6 kA |
| Number of auxiliary contacts as change-over contact | 0 |
| Number of switches | 1 |
| Interlockable | No |
| Motor drive integrated | No |
| Type of electrical connection of main circuit | Screw connection |
| Version as emergency stop installation | No |
| Type of control element | Door coupling rotary drive |
| Rated operation power at AC-23, 400 V | 5.5 kW |
| Colour control element | Black |
| Suitable for floor mounting | Yes |
| Suitable for front mounting 4-hole | No |
| Suitable for front mounting centre | No |
| Suitable for distribution board installation | No |
| Suitable for intermediate mounting | Yes |
| Max. rated operation voltage Ue AC | 690 V |
| Motor drive optional | No |
| Voltage release optional | No |
| Device construction | Built-in device fixed built-in technique |
| Rated permanent current at AC-21, 400 V | 20 A |
| Switching power at 400 V | 5.5 kW |
| Version as reversing switch | No |
| Rated permanent current at AC-23, 400 V | 13.3 A |
| Degree of protection (NEMA) | 12 |
| With pre-assembled cabling | No |
Description
On-Off switch, Product range: On-Off switch, Part group reference: T0, with black thumb grip and front plate, 3 pole + N, Degree of Protection: Front IP65, Design: rear mounting, Switching angle: 90 °, Switching performance: maintained, front plate: 0-1, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 5.5 kW, Rated uninterrupted current: Iu = 20 A, 2 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3
