OMKEERCONTACTOR 4P 40A 1NO+1NC 24VDC

Order only

Price (excl. VAT):

187,91 €

This price is valid until 24.12.25

EAN: 3389110248098

MPN: LC2DT40BD

Package: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	OMKEERCONTACTOR 4P 40A 1NO+1NC 24VDC
Brand	Schneider Electric
Categories	Combined Contactors
Country of origin*	FR
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8536 4190 00
Rated operation power at AC-3, 400 V	0 kW
Rated operation current Ie at AC-3, 400 V	25 A
Rated control supply voltage at DC	24 V
Degree of protection (IP)	IP20
Type of electrical connection of main circuit	Screw connection
Voltage type for actuating	DC

Packing details

Packing level 1

3389110248098

Other Technical data

Number of normally open contacts as main contact	0
Number of normally closed contacts as main contact	0
Rated operation current Ie at AC-1, 400 V	0 A
Degree of protection (NEMA)	Other
Rated operation power NEMA	0 kW

Description

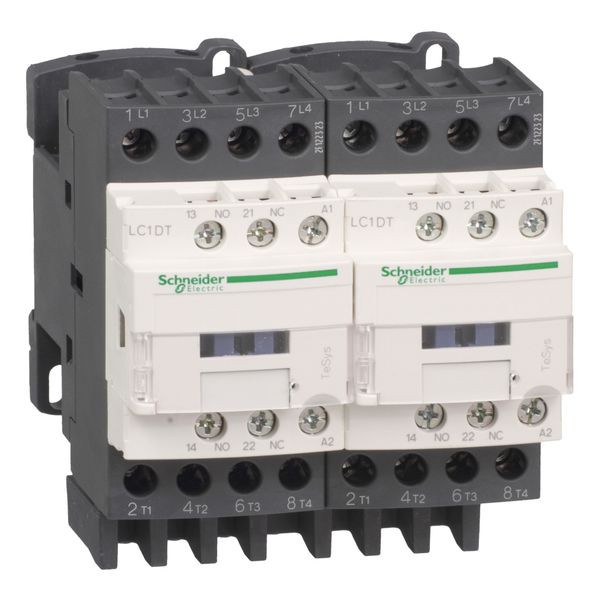

TeSys D changeover contactor, 4 poles (4NO), for non-inductive load applications up to 40A/690V AC-1. It provides 24V DC coils, 2NO+2NC built-in auxiliary contacts (NC mirror contacts), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (90mm width), DIN-rail mounting or screw fixing. With pre-wired changeover power connections, mechanical interlock (without electrical interlocking). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
