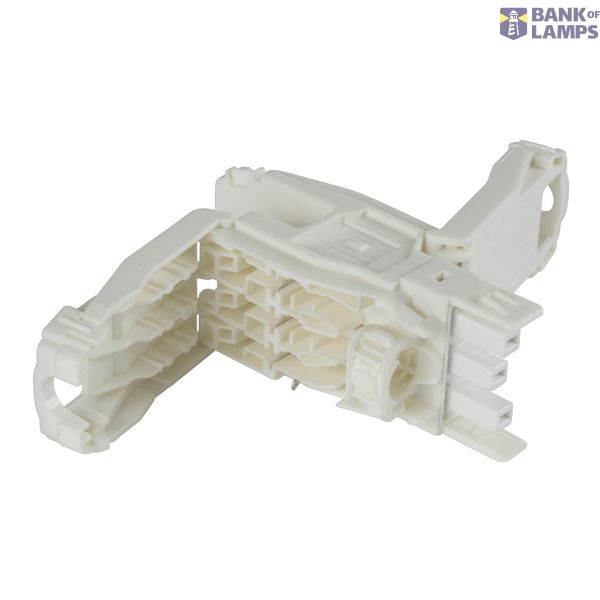

OL50 VERDEELBLOK IDC WIT
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | OL50 VERDEELBLOK IDC WIT |
| Brand | Schneider Electric |
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 9010 00 |
| ETIM | EC002567 |
| Locking mechanism | Integrated in plug-in connector |
| Rated current | 16 A |
| Rated voltage | 250 V |
| Number of inputs | 1 |
| Number of outputs | 2 |
| Number of poles | 3 |
| Housing material | Polyamide (PA) |
| Surface treatment contacts | Untreated |
| Contact material | CuZn |
| Degree of protection (IP) | IP20 |
| Pole codification | L, N, PE |
| Type of integrated switching | None |
| Type of distributor | Distribution terminal block |
| Rated current to luminaire | 16 A |
| Mounting possibility | With separate adapter |
Packing details
| Packing level 1 | 3606485124629 |
Other Technical data
| Width | 35 mm |
| Halogen free | Yes |
| Height | 44 mm |
| Length | 100 mm |
| Pollution degree | 2 |
| Mechanical coding | Yes |
| Rated surge voltage | 4.5 kV |
| Continuity resistor | 0.8 mOhm |
| Colour coding/contact insert | White |
| Fire load | 0.4 kWh |
| Colour of the separate adapter piece | Grey |
| Phase pickup | L1 |
| Max. continuous temperature resistance contact part | 40 °C |
| Max. continuous temperature resistance strain relief | 70 °C |
