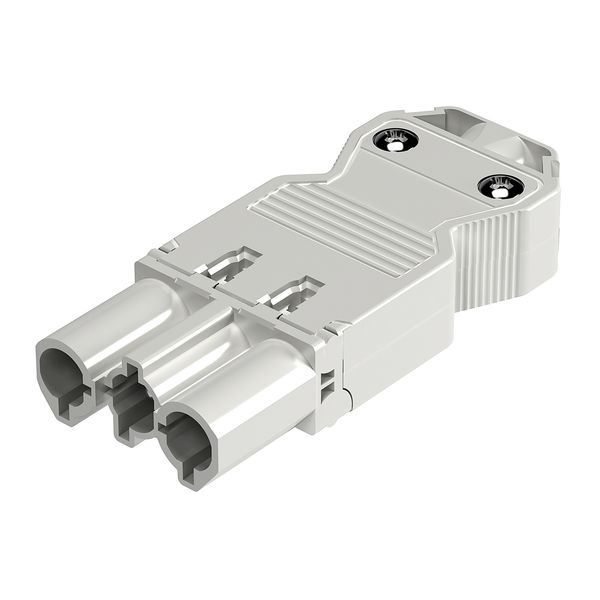

OL50 STEKKER GST18I3 3-POLIG MALE WIT
Order only
Price (excl. VAT):
4,76 €
EAN: 3606480072925
MPN: INS70011
Box: 10
Estimate delivery time to our warehouse: 4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | OL50 STEKKER GST18I3 3-POLIG MALE WIT |
| Brand | Schneider Electric |
| Categories |
Plug-in Connectors
|
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 9010 00 |
| Model | Bus |
| Connection type | Screw connection |
| Locking mechanism | Integrated in plug-in connector |
| Rated current | 16 A |
| Rated voltage | 250 V |
| Number of poles | 3 |
| Length | 70 mm |
| Degree of protection (IP) | IP20 |
| Pole codification | L, N, PE |
Packing details
| Packing level 1 | 3606480072925 |
Other Technical data
| Width | 28 mm |
| Halogen free | Yes |
| Height | 13 mm |
| With strain relief | Yes |
| Housing material | Polyamide (PA) |
| Cable diameter | 10.5 mm |
| Surface treatment contacts | Untreated |
| Pollution degree | 2 |
| Mechanical coding | No |
| Rated surge voltage | 4 kV |
| Continuity resistor | 50 mOhm |
| Contact material | CuZn |
| Number of connections per pole | 1 |
| Colour coding/contact insert | White |
| Fire load | 0.4 kWh |
| Connection cross section (fine-strand) | 2.5 mm² |
| Connection cross section (solid-core) | 2.5 mm² |
| Max. continuous temperature resistance contact part | 40 °C |
| Max. continuous temperature resistance strain relief | 70 °C |
