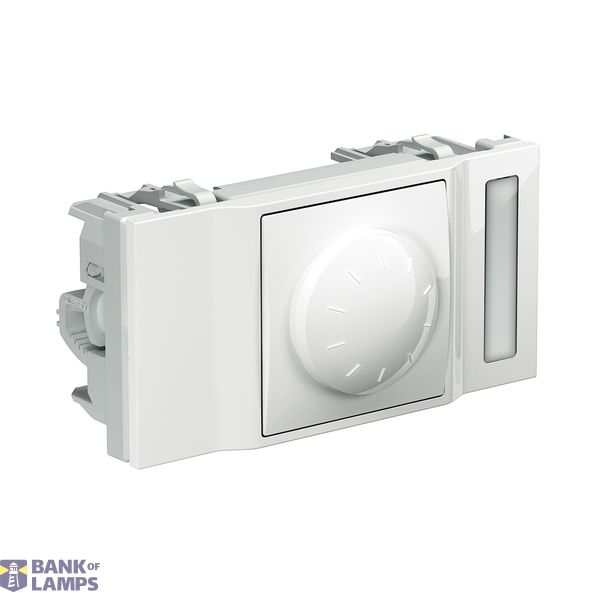

OL50 DIMMER 1-10V WIT
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | OL50 DIMMER 1-10V WIT |
| Brand | Schneider Electric |
| Country of origin* | LV |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 9032 1080 00 |
| ETIM | EC000025 |
| Assembly arrangement | Basic element with full cover plate |
| Method of operation | Turn button |
| Frequency | 50-60 Hz |
| Type of load | Other |
| Nominal voltage | 250 V |
| Suitable for degree of protection (IP) | IP20 |
| Device width | 100 mm |
| Device height | 50 mm |
| Device depth | 40 mm |
| Max. switching power LED | 0 W |
Packing details
| Packing level 1 | 3606485115177 |
Other Technical data
| Mounting method | Wall duct |
| Colour | White |
| Halogen free | Yes |
| Connection type | Other |
| Surface protection | Untreated |
| Material quality | Thermoplastic |
| Material | Plastic |
| Type of fastening | Mounting with claw |
| Light value memory | No |
| Substation input | No |
| RAL-number (similar) | 9010 |
| Serial dimmer | No |
| Applicable with movement sensor | No |
| Applicable with transmission button | No |
| Applicable with infrared button | No |
| Applicable with presence indicator | No |
| Applicable with button | No |
| Applicable with time switch/timer | No |
| Transparent | No |
| Surface finishing | Matt |
| Number of modules (module system) | 0 |
| Dimming phase cut-off | Yes |
| Dimming phase cut-on | Yes |
| Min. depth of built-in installation box | 0 mm |
| App control via Bluetooth | No |
