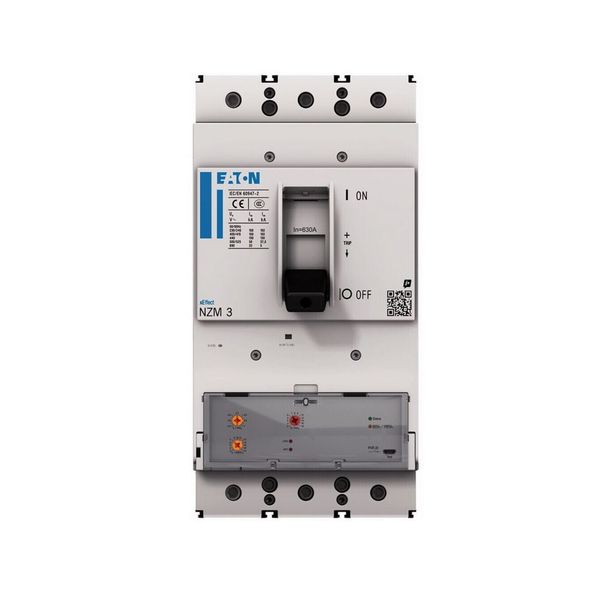

NZML3-MX220-AVE NZM3 PXR20 circuit breaker, 220A, 3p, withdrawable unit image 1
NZML3-MX220-AVE NZM3 PXR20 circuit breaker, 220A, 3p, withdrawable unit image 2
NZML3-MX220-AVE NZM3 PXR20 circuit breaker, 220A, 3p, withdrawable unit image 3
NZML3-MX220-AVE NZM3 PXR20 circuit breaker, 220A, 3p, withdrawable unit image 4
NZML3-MX220-AVE NZM3 PXR20 circuit breaker, 220A, 3p, withdrawable unit image 5
NZML3-MX220-AVE NZM3 PXR20 circuit breaker, 220A, 3p, withdrawable unit image 6
NZML3-MX220-AVE NZM3 PXR20 circuit breaker, 220A, 3p, withdrawable unit image 7
NZML3-MX220-AVE NZM3 PXR20 circuit breaker, 220A, 3p, withdrawable unit image 8
NZML3-MX220-AVE NZM3 PXR20 circuit breaker, 220A, 3p, withdrawable unit image 9
NZML3-MX220-AVE NZM3 PXR20 circuit breaker, 220A, 3p, withdrawable unit image 10
NZML3-MX220-AVE NZM3 PXR20 circuit breaker, 220A, 3p, withdrawable unit image 11
NZML3-MX220-AVE NZM3 PXR20 circuit breaker, 220A, 3p, withdrawable unit thumbnail 1
NZML3-MX220-AVE NZM3 PXR20 circuit breaker, 220A, 3p, withdrawable unit thumbnail 2
NZML3-MX220-AVE NZM3 PXR20 circuit breaker, 220A, 3p, withdrawable unit thumbnail 3
NZML3-MX220-AVE NZM3 PXR20 circuit breaker, 220A, 3p, withdrawable unit thumbnail 4
NZML3-MX220-AVE NZM3 PXR20 circuit breaker, 220A, 3p, withdrawable unit thumbnail 5
NZML3-MX220-AVE NZM3 PXR20 circuit breaker, 220A, 3p, withdrawable unit thumbnail 6
NZML3-MX220-AVE NZM3 PXR20 circuit breaker, 220A, 3p, withdrawable unit thumbnail 7
NZML3-MX220-AVE NZM3 PXR20 circuit breaker, 220A, 3p, withdrawable unit thumbnail 8
NZML3-MX220-AVE NZM3 PXR20 circuit breaker, 220A, 3p, withdrawable unit thumbnail 9
NZML3-MX220-AVE NZM3 PXR20 circuit breaker, 220A, 3p, withdrawable unit thumbnail 10
NZML3-MX220-AVE NZM3 PXR20 circuit breaker, 220A, 3p, withdrawable unit thumbnail 11
EATON

NZML3-MX220-AVE NZM3 PXR20 circuit breaker, 220A, 3p, withdrawable unit

Order only
Price (excl. VAT):
1 933,90 €
This price is valid until 30.06.26
EAN: 4015081919130
MPN: 191401
Package: 1
Estimate delivery time at our warehouse (approx.): 1-4 weeks

Technical Information

Item condition New
Manufacture name NZML3-MX220-AVE NZM3 PXR20 circuit breaker, 220A, 3p, withdrawable unit
Brand EATON
Categories Motor protection circuit-breakers
Country of origin* RO
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code 8536 2090 00
Rated permanent current Iu 220 A
Number of poles 3
Rated operating voltage 690 V
Overload release current setting 88-220 A
Degree of protection (IP) IP20
Rated short-circuit breaking capacity lcu at 400 V, AC 130 kA
Adjustment range undelayed short-circuit release 2-18 A

Packing details

Packing level 1 4015081919130

Other Technical data

Width 185 mm
Height 346 mm
Depth 260 mm
Rated operation power at AC-3, 400 V 110 kW
With integrated auxiliary switch No
With integrated under voltage release No
With thermal protection Yes
Type of electrical connection of main circuit Other
Type of control element Rocker lever
Switch off technique Electronic
Rated operation power at AC-3, 230 V 55 kW
Phase failure sensitive Yes
Device construction Built-in device slide-in technique (withdrawable)

Description

The xEffect NZM...-MX circuit breaker range with Power Expert Release (PXR) electronic triggering system covers a full range of protection applications with only four compact sizes and is suitable for the IEC market. Test function and settings via micro USB port directly on the switch. Modular function groups always make mounting flexible and may be supplemented by the comprehensive range of accessories. RMS value measurement and thermal memory
