NZM2-XAD250-SOND Eaton xEffect SASY 60i Enclosures Switch- & Controlgear Enclosure

Name: NZM2-XAD250-SOND Eaton xEffect SASY 60i Enclosures Switch- & Controlgear Enclosure
Brand: EATON
Availability: PreOrder

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	NZM2-XAD250-SOND Eaton xEffect SASY 60i Enclosures Switch- & Controlgear Enclosure
Brand	EATON
Country of origin*	DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8536 9095 00
ETIM	EC001531
Mounting rail armament	Other
Type of electric connection	Screw connection
Rated current In	250 A

Packing details

Packing level 1

9010653002338

Other Technical data

Busbar distance	60 mm
Max. busbar thickness	10 mm
Width of the adapter	106 mm
Rail width	0 mm
Min. busbar thickness	5 mm

Description

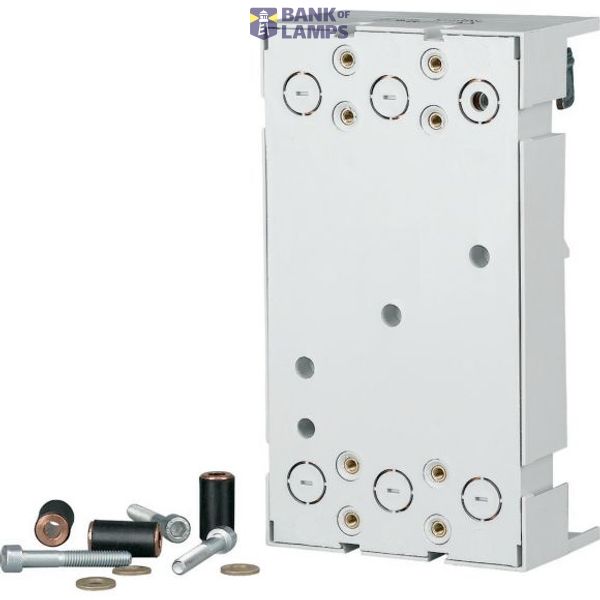

Busbar adapter for NZM circuit-breaker and N switch-disconnector, for surface mounting on Cu-busbars 12-30x5-10, rated operational current Ie=250A, can be used for NZM2, PN2, N(S)2, adapter width=106mm, rated operating voltage Ue=690VAC, threaded connection on the busbar 5mm or 10mm thickness, connection top or bottom possible by turning the adapter, temperature resistant to 120 °C, self-extinguishing to UL 94, track resistance CTI 200, number of poles=3 pole, between busbar centers=60mm, for use only in conjunction with Rittal RiLine60 busbar system articles SV.9340110 + SV.3584000 + SV.9340000.
