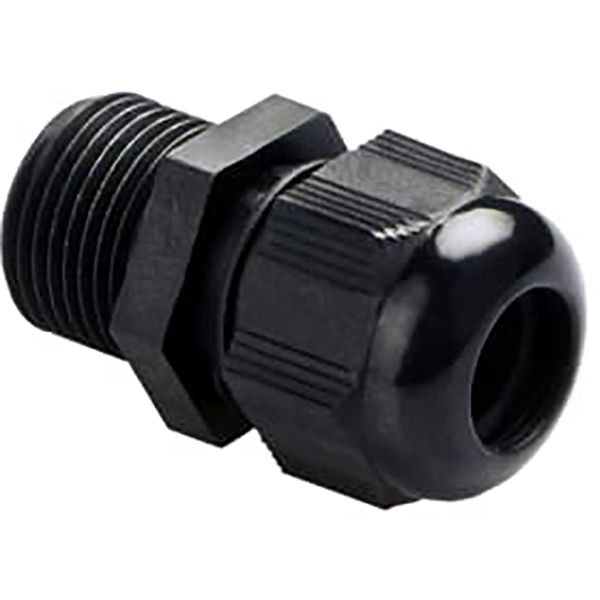

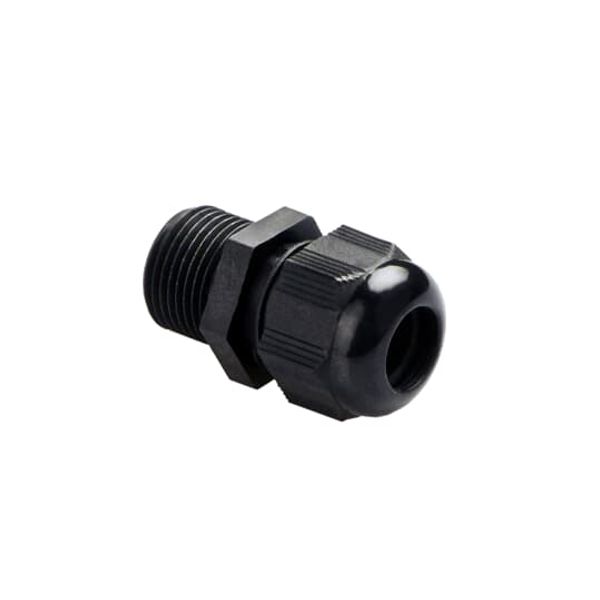

NCG-M401B NYLON CG M40X1.5 16.0-23.0MM BLK
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
2,45 €
EAN: 5415022425338
MPN: 7TCA303070R0108
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | NCG-M401B NYLON CG M40X1.5 16.0-23.0MM BLK |
| Brand | ABB |
| Categories |
Standard Cable Glands
|
| Harmonized System Code | 3917 4000 00 |
| Model | Straight |
| Thread length | 10 mm |
| Material quality | Polyamide (PA) |
| Thread type | Metric |
| Material | Plastic |
| Hexagon angular dimension | 52.4 mm |
| Suitable for cable diameter | 16-23 mm |
| Degree of protection (IP) | IP66 |
| Nominal thread size metric/PG | 40 |
Packing details
| Packing level 1 | 5415022425338 |
Other Technical data
| Colour | Black |
| Halogen free | Yes |
| Shock resistant | No |
| RAL-number | 9001 |
| Surface protection | Untreated |
| Bend radius protection/trumpet flare | No |
| With strain relief | No |
| Glass-fibre reinforced | No |
| Operating temperature | -20-100 °C |
| Pitch thread | 1.5 mm |
| Explosion-tested version | No |
| Flat cable coupling | No |
| Multi seal area | No |
| With locknut | Yes |
| Separable screw gland | No |
| For Ex-zone gas | None |
| For Ex-Zone dust | None |
| Wrench width | 46 mm |
Description
Non Armoured Cable Gland, Thread Size M40, Cable Range 16 to 23mm, Thread Length 10mm, Nylon, Black
