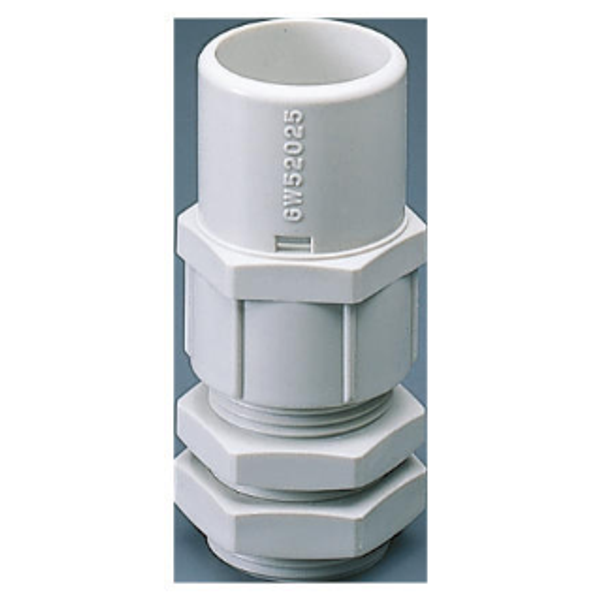

NYLON CABLE GLAND WITH HOUSING FOR RIGID CONDUIT - PG PITCH 21 FOR CONDUITS Ø 25MM - GREY RAL 7035 - IP66
In stock: No
Vendor stock: No
Minimal order quantity: 15
Price (excl. VAT):
0,87 €
Subtotal: 13,05 €
MOQ: 15
EAN: 8011564025165
MPN: GW52026
Package: 1
Box: 240
Pallet: 3840
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | NYLON CABLE GLAND WITH HOUSING FOR RIGID CONDUIT - PG PITCH 21 FOR CONDUITS Ø 25MM - GREY RAL 7035 - IP66 |
| Brand | GEWISS |
| Categories |
Standard Cable Glands
|
| Harmonized System Code | 8538 9099 00 |
| Model | Straight |
| Thread length | 14 mm |
| Material quality | Polyamide (PA) |
| Thread type | PG |
| Material | Plastic |
| Hexagon angular dimension | 37 mm |
| Suitable for cable diameter | 9 mm |
| Degree of protection (IP) | IP66 |
| Nominal thread size metric/PG | 21 |
Packing details
| Packing level 1 | 8011564025165 |
| Packing level 2 | 8011564025165 |
| Packing level 3 | 8011564025165 |
| Packing level 4 | 8011564025165 |
Other Technical data
| Colour | Grey |
| Halogen free | No |
| Shock resistant | Yes |
| RAL-number | 7035 |
| Surface protection | Untreated |
| Bend radius protection/trumpet flare | Yes |
| With strain relief | Yes |
| Screened | No |
| EMC-version | No |
| Glass-fibre reinforced | No |
| Type of sealing | Cut-out ring |
| Operating temperature | -25-65 °C |
| Pitch thread | 1.59 mm |
| Explosion-tested version | No |
| Flat cable coupling | No |
| Multi seal area | No |
| With locknut | Yes |
| Separable screw gland | No |
| For Ex-zone gas | None |
| For Ex-Zone dust | None |
| For armoured cable | Yes |
| Snapping in opening | No |
| Wrench width | 32 mm |
Downloads
Description
GW FIT Range Accessories for electrical installation - Complete system comprising cable glands, plastic and metal fixings, couplings for rigid conduits and sheaths, cable ties for external and junction and connection terminal blocks. The depth of the range and breadth of the offers of each family makes GEWISS the specialist and ideal partner when implementing any type of system, from residential to commercial and industrial sector.
