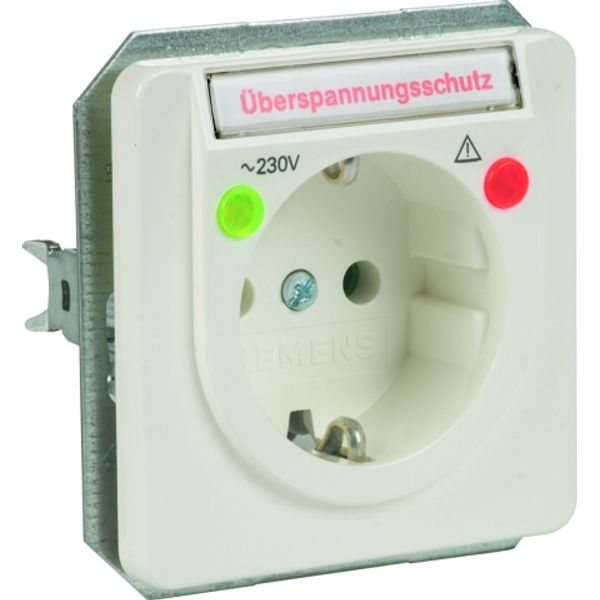

NSM Protector, surge protective socket outlet, titanium white
Order only
Price (excl. VAT):
165,54 €
EAN: 4013364071773
MPN: 924335
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | NSM Protector, surge protective socket outlet, titanium white |
| Brand | Dehn |
| Categories |
Surge Protection Devices (SPD)
|
| Country of origin | DE |
| Harmonized System Code | 8536 3010 00 |
| Max. continuous voltage AC | 255 V |
| Total discharge current (8/20) (L+N-PE) | 5 kA |
| Nominal discharge surge current (8/20) (L-N) | 3 kA |
| Nominal voltage AC | 230 V |
| Voltage protection level L-N | 1.25 kV |
| Voltage protection level L-PE/N-PE | 1.5 kV |
| Degree of protection (IP) | IP20 |
Packing details
| Packing level 1 | 4013364071773, 4013364071773 |
Other Technical data

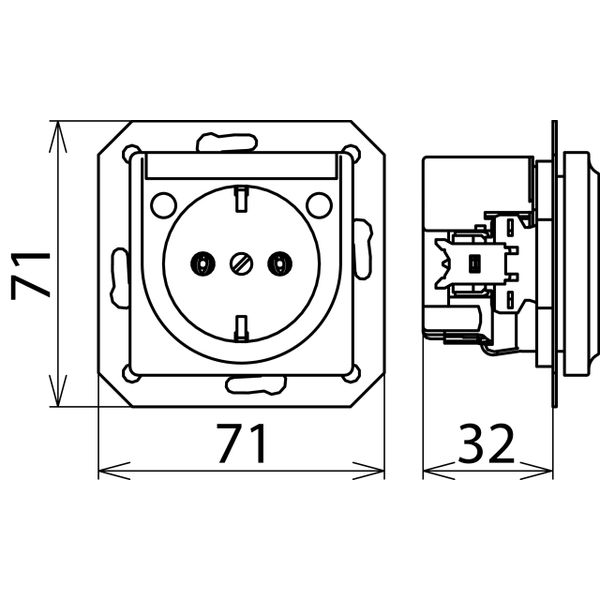

| Mounting method | Surface mounted/recessed mounted |
| Number of poles | 2 |
| Category type 3 | Yes |
| Signalling at the device | Optic |
| Max. conductor cross section solid (solid, stranded) | 2.5 mm² |
| Max. conductor cross section flexible (fine-strand) | 2.5 mm² |
| Max. overcurrent protection device, parallel connection (fuse) | 16 A |
Downloads
Description

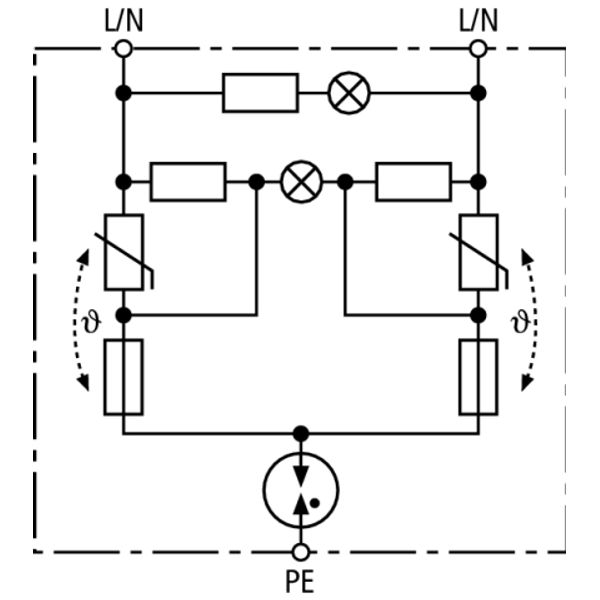

Two-pole NSM-Protector surge arrester (type 3 according to EN 61643-11) with monitoring device and disconnector. Enhanced safety du to Y protective circuit. For protecting electronic equipment against surges. Earthed socket outlet with surge protective circuit for installation in electrical installation systems. For installation in conformity with the lightning protection zone concept at the boundaries from 1 – 2 and higher.
