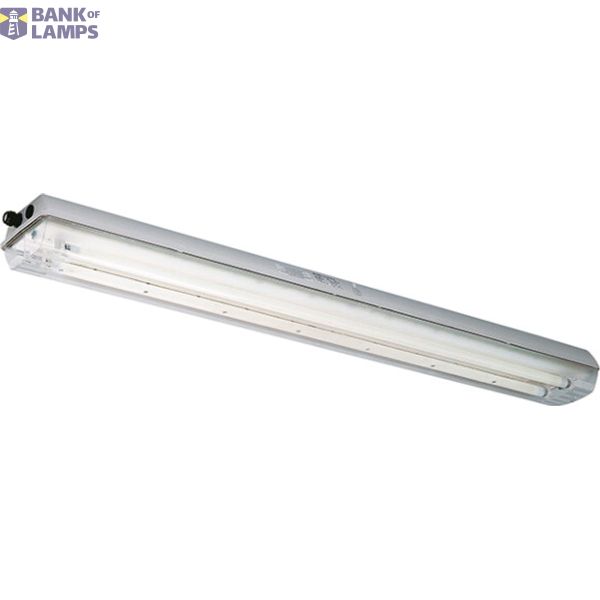

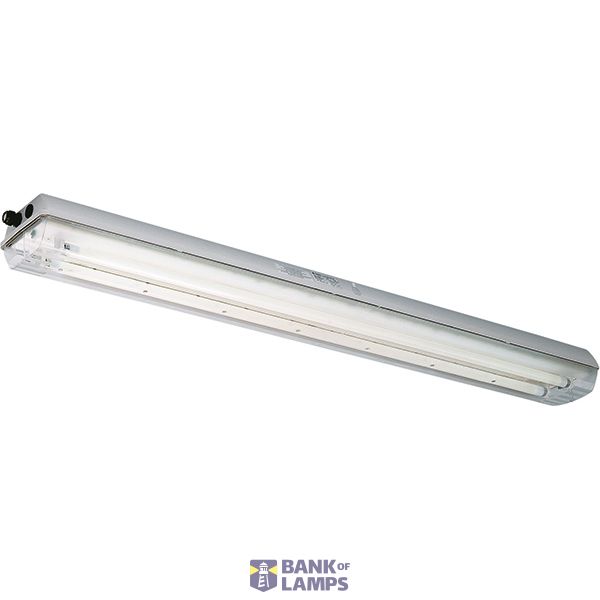

nLLK15 LED 1500 V-CG-S 1/6
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | nLLK15 LED 1500 V-CG-S 1/6 |
| Brand | EATON |
| ETIM | EC001952 |
| Width | 188 mm |
| Length | 1.66 mm |
| Height/depth | 130 mm |
| Lamp type | LED exchangeable |
| Impact strength | IK10 |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP66 |
| Beam angle | Wide beam 41-80° |
| Rated luminous flux according to IEC 62722-2-1 | 9.3 lm |
Packing details
| Packing level 1 | 4251958117258 |
Other Technical data
| Mounting method | Wall-/ceiling mounting |
| Protection class | I |
| Lamp holder | G5 |
| Conductor cross section | 6 mm² |
| Connection type | Screwed terminal |
| Voltage type | AC/DC |
| Suitable for lamp power | 23-32 W |
| Type of control gear | LED operating device current-controlled |
| Adjustable | No |
| Number of poles | 6 |
| Housing material | Plastic |
| Material cover | Plastic, transparent |
| For Ex-zone gas | 2 |
| With light source | No |
| Suitable for number of lamps | 2 |
| With control gear | Yes |
| For Ex-Zone dust | 22 |
| Constant light output (CLO) | No |
| Type of wiring | Suitable for through wiring |
| Degree of protection (NEMA) | Other |
| Rated ambient temperature according to IEC62722-2-1 | -25-45 °C |
| Light distributor | Reflector |
| Exchangeable control gear | No |
| Power factor | 0.9 |
Description
nLLK15 LED 1500 V-CG-S 1/6-1K, Clamping points single-sided, Cable entry: 2x M25 Plastic-Thread, 1x M25 Plastic-Cable gland & 1x M25 Plastic-Blind plug
