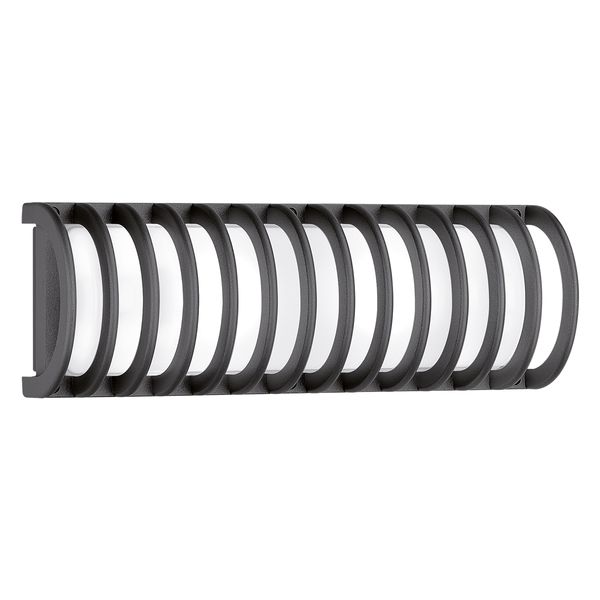

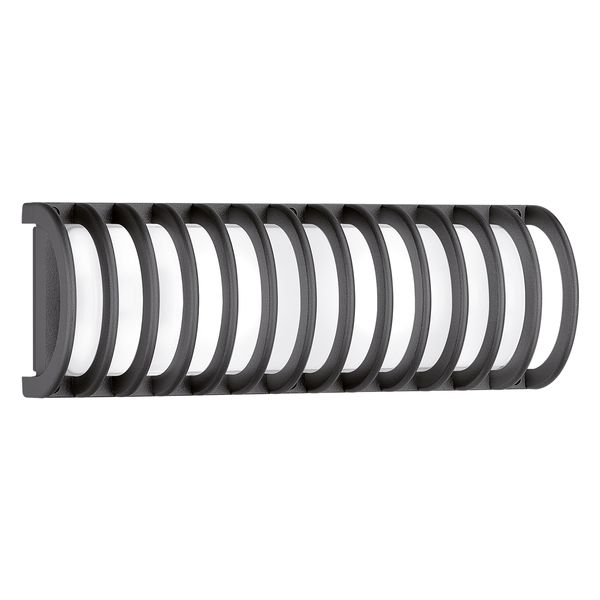

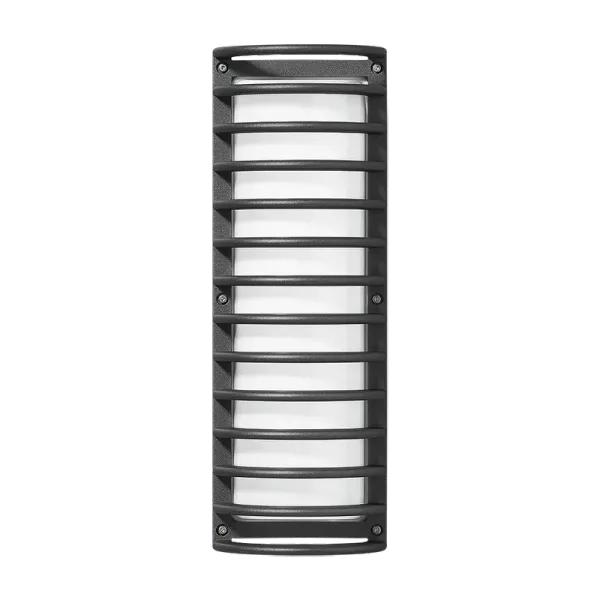

NIKKO+ 45/G 10LED 15W 4000K ANTHRACITE
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
Price by request
EAN: 8018367607864
MPN: 303120
Package: 1
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | NIKKO+ 45/G 10LED 15W 4000K ANTHRACITE |
| Brand | Performance in Lighting |
| Categories |
Wall and ceiling luminaires
|
| Country of origin | IT |
| Harmonized System Code | 9405 1190 00 |

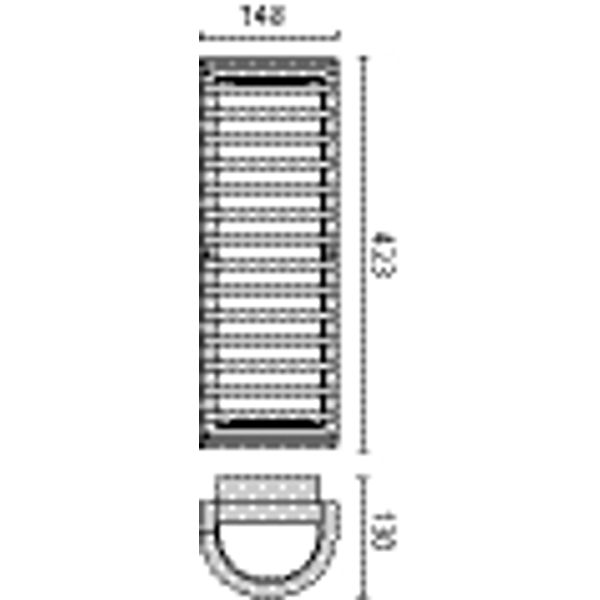

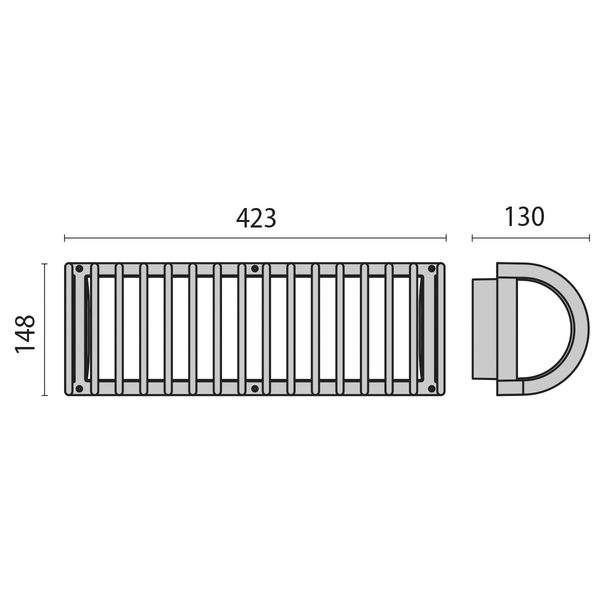

| Width | 423 mm |
| Colour housing | Anthracite |
| Colour rendering index CRI | 80-89 |
| Length | 130 mm |
| Height/depth | 148 mm |
| Lamp type | LED not exchangeable |
| Impact strength | IK06 |
| Nominal voltage | 220 V |

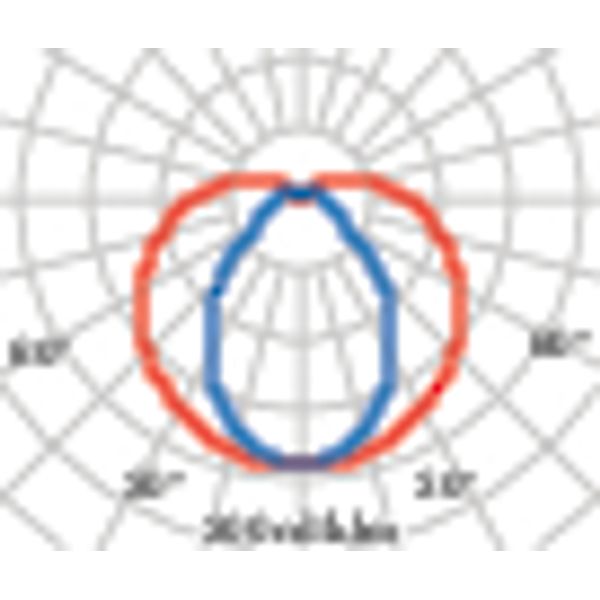

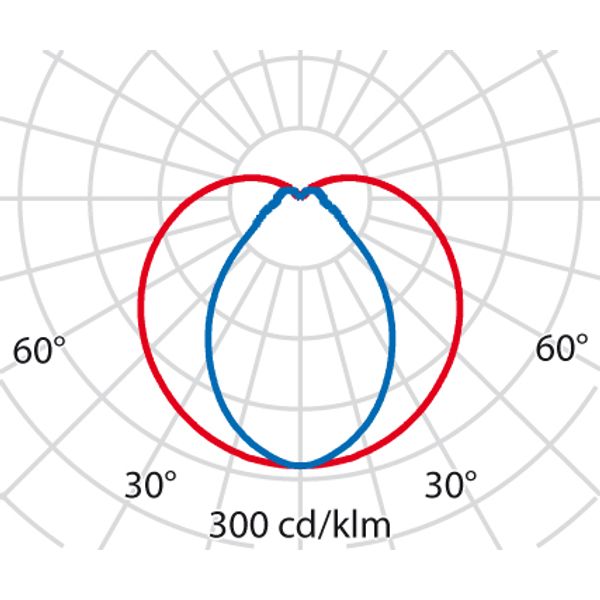

| Beam angle | Open beam/diffuse |
| Colour temperature | 4000 K |
| Max. system power | 15 W |
Packing details
| Packing level 1 | 8018367607864, 8018367607864 |
Other Technical data
| Protection class | I |
| Lamp holder | Other |
| Connection type | Screwed terminal |
| Voltage type | AC |
| With movement sensor | No |
| Suitable for lamp power | 15 W |
| Type of grid | None |
| Type of control gear | LED operating device current-controlled |
| With light sensor | No |
| Suitable for suspended mounting | No |
| Number of poles | 4 |
| Housing material | Aluminium |
| Suitable for light line configuration | No |
| Suitable for emergency lighting | No |
| Light outlet | Direct |
| Light sharing | Symmetric |
| Material cover | Glass opal |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Covering of the luminaire with thermally insulating material possible | No |
| Suitable for number of lamps | 1 |
| Suitable for built-in mounting | No |
| With control gear | Yes |
| Suitable for workplace according to EN 12464-1 | No |
| Suitable for surface mounting | No |
| Colour of light | White |
| With air slots | No |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Photobiological safety according to EN 62471 | RG1 |
| Filament test according to IEC 60695-2-11 | None |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| Dimming DSI | No |
| Operation by Bluetooth | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Max. number of luminaires per miniature circuit breaker C16 | 42 |
| Max. number of luminaires per miniature circuit breaker B16 | 25 |
| Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq) | 78.6 % |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 71 % |
| Lumen maintenance at median useful life of 75,000 h at 25 °C ambient (tq) | 60 % |
| Dimming DALI-2 | No |
| Colour temperature adjustable | No |
| Luminous flux adjustable | No |
| Beam angle adjustable | No |
| Exchangeable control gear | Yes |
| Suitable for ceiling mounting | No |
| Surface protection housing | Lacquered |
Downloads
Description
Wand- en mastarmatuur in twee afmetingen voor binnen en buiten, bestaande uit: Basis en korf van gelakt aluminium. Afscherming van geperst, van binnen gesatineerd, glas, vormt één geheel met ring. Siliconen pakking. Schroeven van roestvrij staal. De DA versies zijn uitgerust met een dubbele ontsteking bestaande uit twee parallelle drivers die twee gescheiden lijnen eisen.
Accessories
8018367004427
8018367004465
8018367004502
8018367004540
