Netlink CCD - DALI Gateway, control cabinet

Name: Netlink CCD - DALI Gateway, control cabinet
Brand: Zumtobel
Price: 2608.220 EUR
Availability: PreOrder

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

2 608,22 €

This price is valid until 24.12.25

EAN: 9008709723351

MPN: 22169263

Package: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	Netlink CCD - DALI Gateway, control cabinet
Brand	Zumtobel
Categories	Bus System Devices (KNX/Modbus)
Country of origin	CH
Harmonized System Code	8537 1098 00
Width in number of modular spacings	9

Packing details

Packing level 1

9008709723351, 9008709723351

Downloads

Declaration DOC CE (Declaration of conformity CE) Declaration RoHS Sales brochure

Description

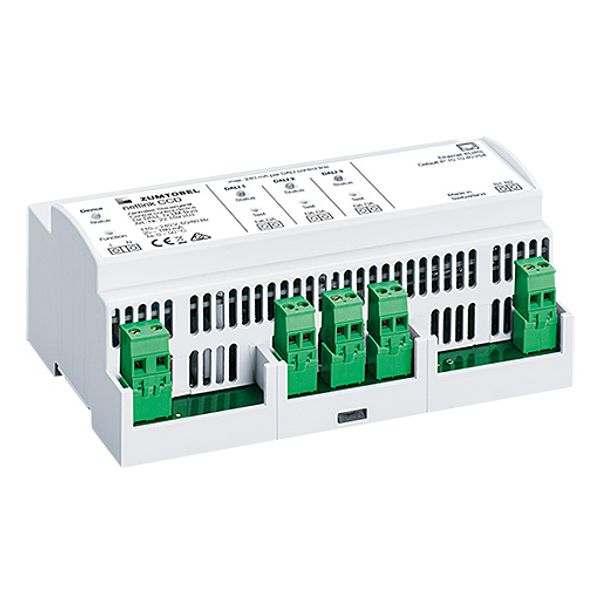

Digital output unit for simultaneous control of up to 3 x 64 DALI-compatible lamp control gear that can be operated in up to 99 groups and 20 scenes, dimming range 1 to 100%; all control gear can be assigned new addresses or re-addressed remotely without accessing the unit; error feedback to system possible; special LUXMATE DALI sensors and user control points can also be connected to the DALI control lines. With integral power supplies for the three DALI lines. LM bus interface. Input side: Ethernet connection (CAT 5 or higher); output side: one 2-wire control line per output, mains connector and bus connector. Control lines are interchangeable; standard installation parts can be used; screw/plug-in terminal connections and RJ45 connector; cabinet enclosure made of anodised aluminium. Unit can be installed on 35 mm DIN rail to EN50022 in control and distribution cabinets for permissible ambient temperatures in the range 0-50°, IP20 degree of protection; dimensions: 62 x 160 x 91 mm, 9 HP of 17.8 mm each; weight: 0.7 kg
