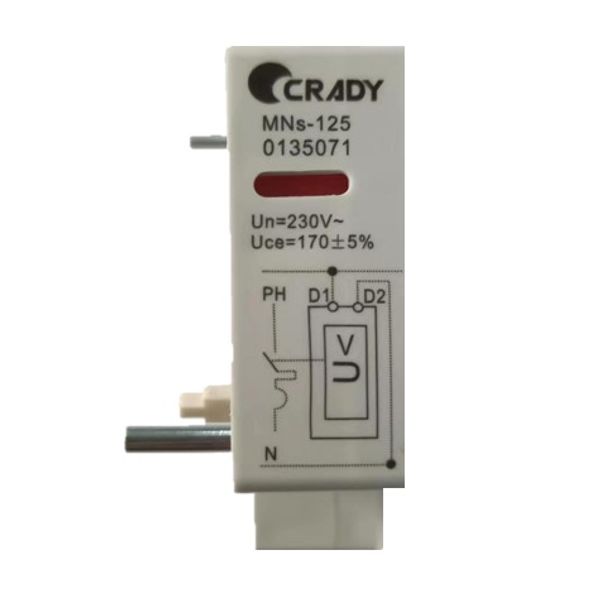

NDT3-MNS-125-ACC UNDERVOLTAGE RELEASE COIL
Order only
Price (excl. VAT):
104,473 €
EAN: 8426487598533
MPN: 0135071
Package: 1
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | NDT3-MNS-125-ACC UNDERVOLTAGE RELEASE COIL |
| Brand | CRADY |
| Categories |
Breakers
|
| Country of origin* | CN |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 1050 90 |
| Rated voltage | 400 V |
| Width in number of modular spacings | 1 |
| Number of poles (total) | 1 |
Packing details
| Packing level 1 | 8426487598533 |
Other Technical data
| Voltage type | AC |
| Built-in depth | 72 mm |
| Frequency | 50-60 Hz |
| Rated insulation voltage Ui | 200 V |
| Pollution degree | 2 |
| Explosion-proof | No |
| Degree of protection (IP) | IP20 |
| Number of protected poles | 1 |
| Concurrently switching neutral conductor | No |
| Connectable conductor cross section solid-core | 0-16 mm² |
| Connectable conductor cross section multi-wired | 0-16 mm² |
| Ambient temperature during operating | -25-40 °C |
| Flush-mounted installation | No |
| Additional equipment possible | Yes |
| Rated impulse withstand voltage Uimp | 1 kV |
Downloads
Description
Bobina de mínima tensión para gama de automáticos, serie NDT3, de 80A a 125A
