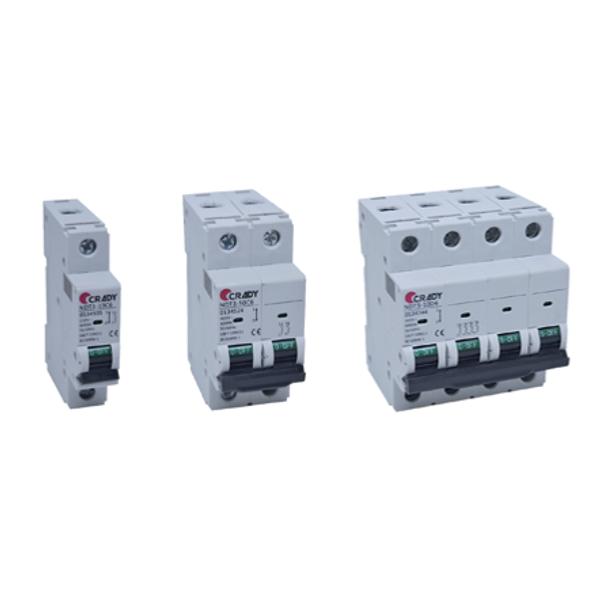

NDT3-16C10-2-MINIATURE CIRCUIT BREAKER

In stock: No Vendor stock: No Minimal order quantity: 6

Price (excl. VAT):

Price by request

This price is valid while stock lasts

Subtotal: 0,00 € MOQ: 6

EAN: 8426487585434

MPN: 0134571

Package: 1

Estimate delivery time at our warehouse (approx.): By request

Technical Information

Item condition	New
Manufacture name	NDT3-16C10-2-MINIATURE CIRCUIT BREAKER
Brand	CRADY
Categories	Circuit breakers 16A
Country of origin	CN
Harmonized System Code	8536 1090 90
Rated current	16 A
Rated voltage	230 V
Release characteristic	C
Width in number of modular spacings	2
Number of poles (total)	2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V	10 kA

Packing level 1

8426487585434

Voltage type	AC
Built-in depth	60 mm
Frequency	50-60 Hz
Explosion-proof	No
Degree of protection (IP)	IP20
Number of protected poles	2
Concurrently switching neutral conductor	No
Connectable conductor cross section solid-core	4 mm²
Connectable conductor cross section multi-wired	4 mm²
Ambient temperature during operating	- °C
Flush-mounted installation	No
Additional equipment possible	No
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V	15 kA

Declaration DOC CE (Declaration of conformity CE) Product data sheet Instructions for use

Interruptor automático magnetotérmico NDT3-16C10-2 Curva C industrial "NDT3"
