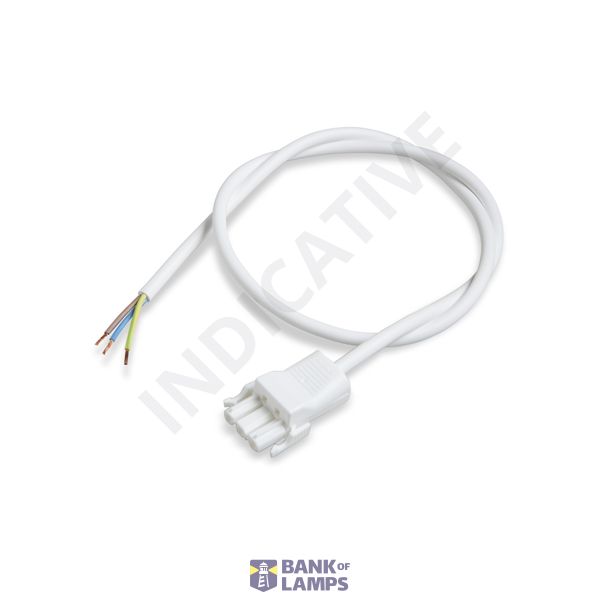

NAL130T15025 | Cable set 3p socket 3x1,5mm² HF 2,5m
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | NAL130T15025 | Cable set 3p socket 3x1,5mm² HF 2,5m |
| Brand | Ensto |
| ETIM | EC002587 |
| Nominal cross section conductor | 1.5 mm² |
| Rated current | 16 A |
| Rated voltage | 250 V |
| Number of poles | 3 |
| Degree of protection (IP) | IP20 |
| Type of finished cable | Device connection cable |
| Type side 1 | Free conductor end |
| Type side 2 | Bus |
Packing details
| Packing level 1 | 6418677722226 |
| Packing level 2 | 6418677722226 |
| Packing level 3 | 6418677722226 |
Other Technical data
| Halogen free | No |
| Cable type | S05Z1Z1-F |
| Colour housing | White |
| Locking mechanism | Integrated in plug-in connector |
| Total length | 2500 mm |
| Colour outer sheath | White |
| Surface treatment contacts | Silver-plated |
| Mechanical coding | No |
| Pole codification | L, N, PE |
| Colour coding/contact insert | White |
| Conductor end treatment | Ultrasonic compressed wire ends |
Description
Lead sets with white couplers are recommended for power supply to lighting systems, sockets and other devices.
