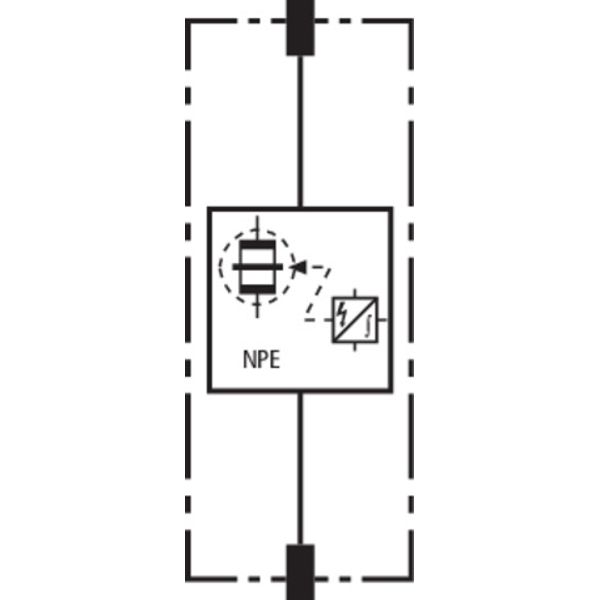

N-PE spark-gap-based protection module Type 1 + Type 2 for DEHNventil image 1

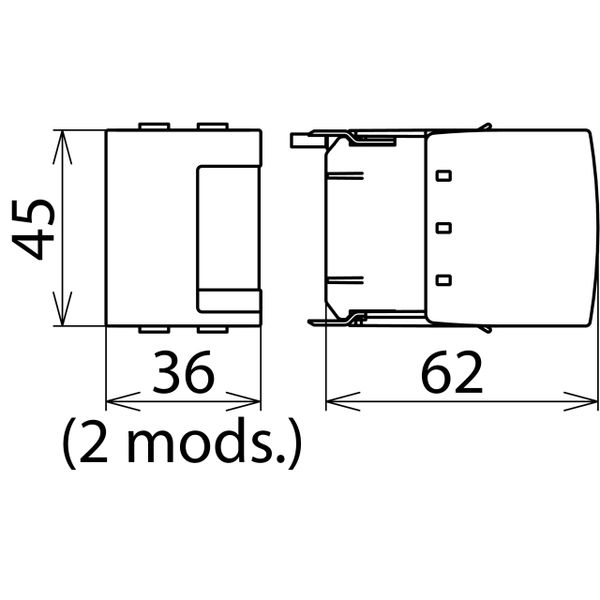

N-PE spark-gap-based protection module Type 1 + Type 2 for DEHNventil image 2
N-PE spark-gap-based protection module Type 1 + Type 2 for DEHNventil image 3
N-PE spark-gap-based protection module Type 1 + Type 2 for DEHNventil thumbnail 1
N-PE spark-gap-based protection module Type 1 + Type 2 for DEHNventil thumbnail 2
N-PE spark-gap-based protection module Type 1 + Type 2 for DEHNventil thumbnail 3
Dehn

N-PE spark-gap-based protection module Type 1 + Type 2 for DEHNventil

In stock: No Vendor stock: No Minimal order quantity: 1
Price (excl. VAT):
610,56 €
This price is valid until 31.12.25
EAN: 4013364108080
MPN: 951100
Package: 1
Estimate delivery time at our warehouse (approx.): 2 weeks

Technical Information

Item condition New
Manufacture name N-PE spark-gap-based protection module Type 1 + Type 2 for DEHNventil
Brand Dehn
Categories Surge Protection Devices (SPD)
Country of origin DE
Harmonized System Code 8536 3030 00
Lightning impulse current (10/350 µs) 100 kA
Voltage protection level 1.5 kV
Max. continuous voltage AC 264 V
Nominal voltage AC 230 V
Test class Type 1 + 2

Packing details

Packing level 1 4013364108080, 4013364108080

Other Technical data

Mounting method On basic element
Follow current extinguishing capability 100 kA
Signalling at the device Optic
Specific energy (W/R) 2500 kJ/Ohm
Energy-coordinated protection effect with regard to the terminal equipment Yes
System configuration TN-S Yes
System configuration TT Yes

Downloads

Product data sheet Dimensioned drawing Circuit diagram Deep link REACH

Description

Spark-gap-based protection module for DEHNventil modular (type 1 according to EN 61643-11).

Suitable for

Multipole DEHNventil modular type 1 and type 2 according to EN 61643-
