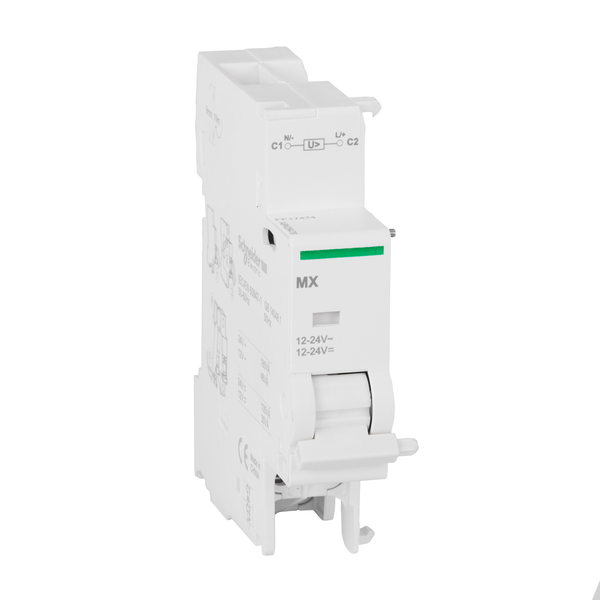

MX Shunt trip 12-24Vac 12-24Vdc
Order only
Price (excl. VAT):
73,54 €
EAN: 3606480382918
MPN: A9N26478
Package: 1
Box: 8
Pallet: 576
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | MX Shunt trip 12-24Vac 12-24Vdc |
| Brand | Schneider Electric |
| Categories |
Assembly Accessories and Parts
|
| Country of origin* | BE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Device fitting | Miniature circuit breaker (MCB) |
| Number of contacts as normally open contact | 0 |
| With auto test for earth leakage function | No |
| Suitable for max. current main contact unit | 125 A |
Packing details
| Packing level 1 | 3606480382918 |
| Packing level 2 | 3606480382915 |
| Packing level 3 | 3606480382916 |
| Packing level 4 | 3606480382918 |
Other Technical data
| Rated voltage | 24 V |
| Installed at the factory | No |
| Width in number of modular spacings | 0 |
| Rated switch current | 0 A |
| Number of fault-signal switches | 0 |
| Additional equipment | Shunt release (for power circuit breaker) |
| Voltage type for actuating | AC/DC |
| Number of contacts as normally closed contact | 0 |
| Number of contacts as change-over contact | 0 |
| Suitable for max. number of poles main contact unit (total) | 4 |
Downloads
ECOP (Environmental Code of Practice)
Technical manual
Declaration EPD (Environmental Product Declaration)
Mounting instruction
Others
Description
This MX product is a shunt trip release auxiliary. It is fixed on DIN rail. The Uc control circuit voltage is 12VAC to 24VAC with a 50/60Hz frequency, or 12VDC to 24VDC. The dimensions are (W) 18mm x (H) 82.5mm x (D) 73.5mm.
