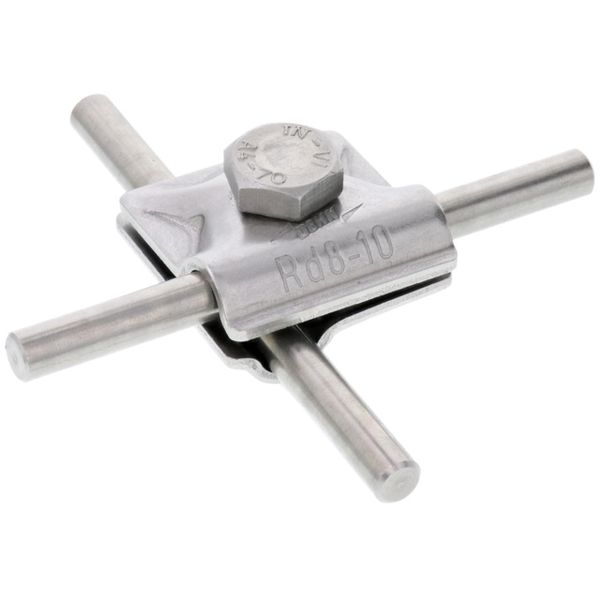

MV clamp StSt (V4A) f. Rd 8-10mm with hexagon screw

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

5,48 €

This price is valid until 24.12.25

EAN: 4013364128996

MPN: 390079

Package: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	MV clamp StSt (V4A) f. Rd 8-10mm with hexagon screw
Brand	Dehn
Categories	Earthing Systems
Country of origin	DE
Harmonized System Code	8538 9099 00
Surface protection	Untreated
Type of fastening screws	Hexagon screw
Material	Stainless steel V4A
Lightning current load-bearing capacity (10/350 µs)	100 kA
Diameter round conductor 1	8-10 mm

Packing details

Packing level 1

4013364128996, 4013364128996

Other Technical data

Type of connector	T-/cross-/parallel connector
Diameter round conductor 2	8-10 mm

Downloads

Product data sheet Dimensioned drawing

Description

Multipurpose connecting clamp according to EN 62561-1, for universal use as a cross clamp, T clamp, and parallel clamp for round conductors. Two-piece with hexagon screw and thread in the base part.
