Dehn

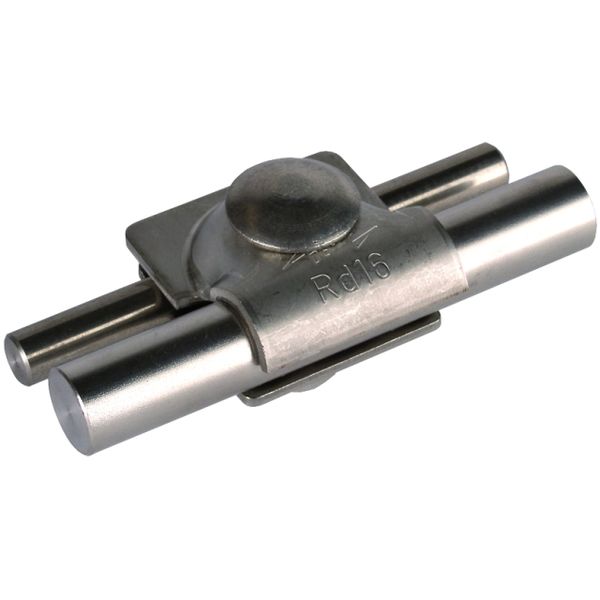

MV clamp StSt f. Rd 8-10/16mm with truss head screw and nut

In stock: No Vendor stock: No Minimal order quantity: 1
Price (excl. VAT):
5,91 €
This price is valid until 24.12.25
EAN: 4013364096158
MPN: 392069
Package: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition New
Manufacture name MV clamp StSt f. Rd 8-10/16mm with truss head screw and nut
Brand Dehn
Categories Earthing Products
Country of origin DE
Harmonized System Code 8538 9099 00
Surface protection Untreated
Type of fastening screws Other
Material Stainless steel V2A
Diameter round conductor 1 8-10 mm

Packing details

Packing level 1 4013364096158, 4013364096158

Other Technical data

Type of connector T-/cross-/parallel connector
Diameter round conductor 2 16 mm

Downloads

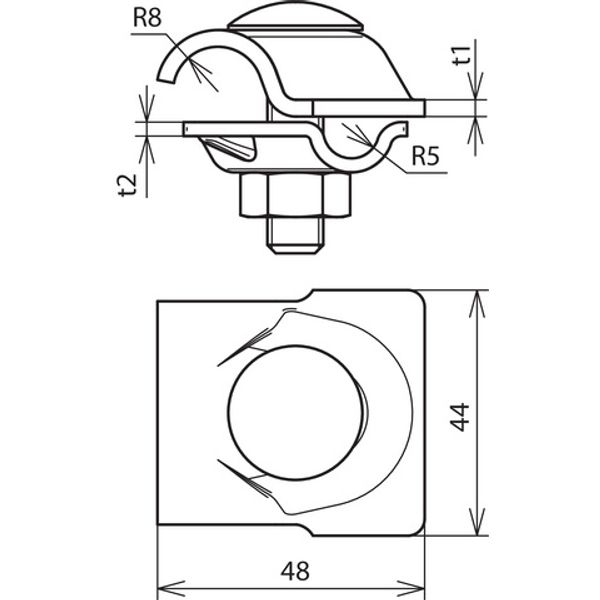

Product data sheet Dimensioned drawing

Description

Rod clamp according to EN 62561-1, for connecting air-termination rods Rd 16mm to round conductors. With truss head screw and anti-rotation protection, for longitudinal or cross connection.
