MV clamp St/tZn f. Rd 8-10/16mm with truss head screw and nut

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

2,66 €

This price is valid until 24.12.25

EAN: 4013364096141

MPN: 392060

Package: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	MV clamp St/tZn f. Rd 8-10/16mm with truss head screw and nut
Brand	Dehn
Categories	Earthing Products
Country of origin	DE
Harmonized System Code	8538 9099 00
Surface protection	Hot-dip galvanized
Type of fastening screws	Other
Material	Steel
Diameter round conductor 1	8-10 mm

Packing details

Packing level 1

4013364096141, 4013364096141

Other Technical data

Type of connector	T-/cross-/parallel connector
Diameter round conductor 2	16 mm

Downloads

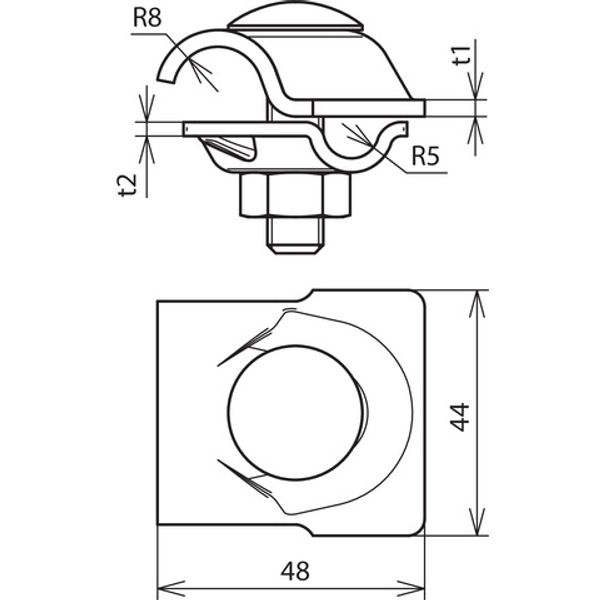

Product data sheet Dimensioned drawing Deep link REACH

Description

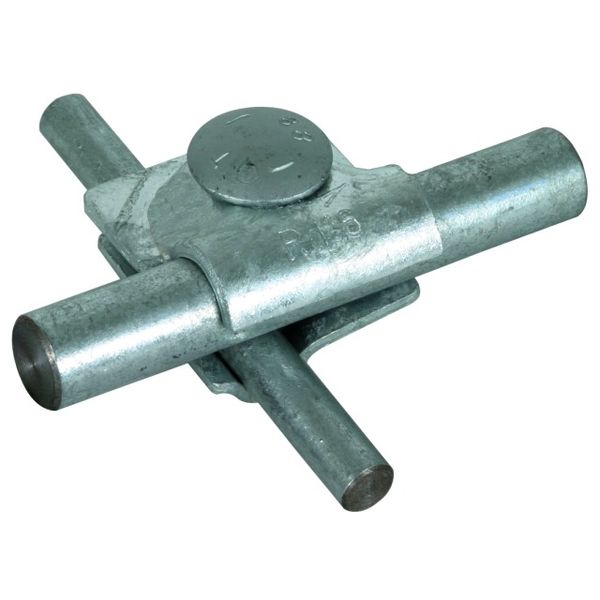

Rod clamp according to EN 62561-1, for connecting air-termination rods Rd 16mm to round conductors. With truss head screw and anti-rotation protection, for longitudinal or cross connection.
