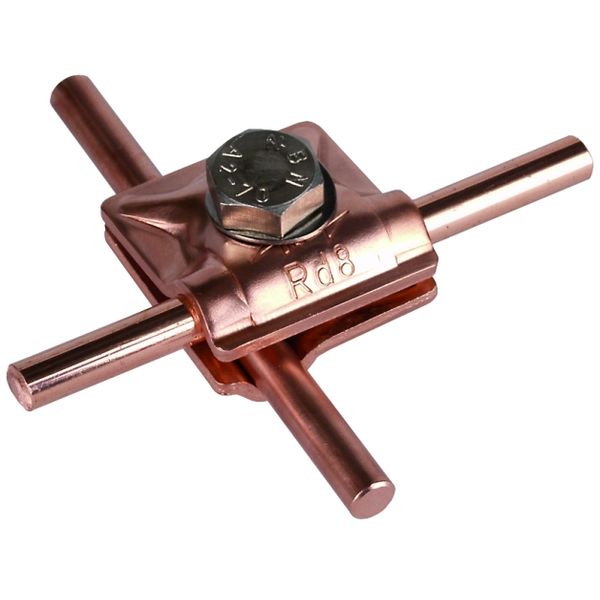

MV clamp Cu f. Rd 8mm with hexagon screw and spring washer

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

17,18 €

This price is valid until 31.12.25

EAN: 4013364096097

MPN: 390557

Package: 1

Estimate delivery time at our warehouse (approx.): 2 weeks

Technical Information

Item condition	New
Manufacture name	MV clamp Cu f. Rd 8mm with hexagon screw and spring washer
Brand	Dehn
Categories	Earthing Products
Country of origin	DE
Harmonized System Code	8538 9099 00
Surface protection	Untreated
Type of fastening screws	Hexagon screw
Material	Copper
Lightning current load-bearing capacity (10/350 µs)	100 kA
Diameter round conductor 1	8 mm

Packing details

Packing level 1

4013364096097, 4013364096097

Other Technical data

Type of connector	T-/cross-/parallel connector
Diameter round conductor 2	8 mm

Downloads

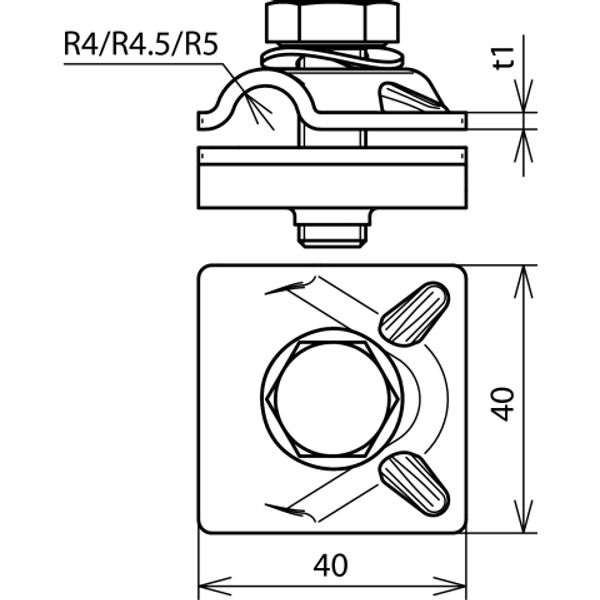

Product data sheet Dimensioned drawing

Description

Multipurpose connecting clamp according to EN 62561-1, for universal use as a cross clamp, T clamp, and parallel clamp for round conductors. Two-piece with hexagon screw, spring washer and thread in the base part.
