Murau BV 2xSSDu M20oBVu VC3p e-bike Ea
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | Murau BV 2xSSDu M20oBVu VC3p e-bike Ea |
| Brand | PCE |
| Harmonized System Code | 8537 1098 00 |
| ETIM | EC000379 |
| Surface treatment contacts | Nickel-plated |
| Handling | Wall mounting |
| Contact material | CuZn |
| Degree of protection (IP) | IP54 |
Packing details
| Packing level 1 | 9003399387562 |
Other Technical data
| Colour | Grey |
| Width | 204 mm |
| Height | 255 mm |
| Depth | 114 mm |
| Number of socket outlets with protective contact (type F) | 2 |
| Protection | Overcurrent switch |
| Housing material | Plastic |
| Earth leakage switch | Earth leakage switch with IFN 30 mA (standard) |
| Power supply/connection possibility | 1 cable (branch line) |
| Number of miniature circuit breakers | 2 |
| Type of mains connection | Protective contact (type F) |
| Number of poles mains connection | 3 |
Downloads
Description

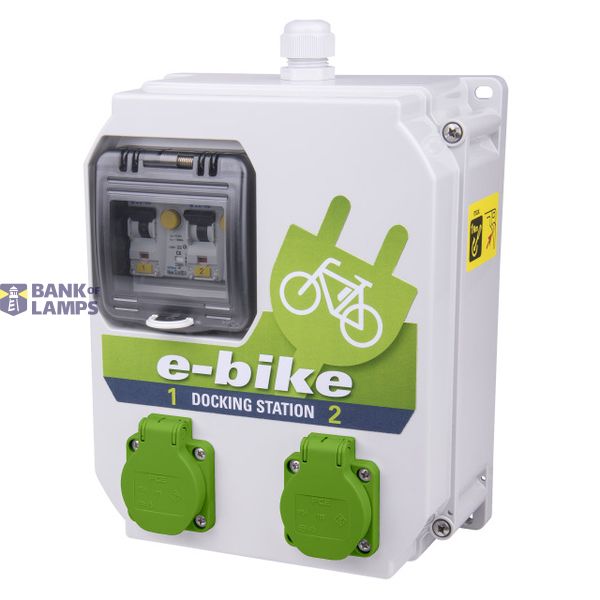

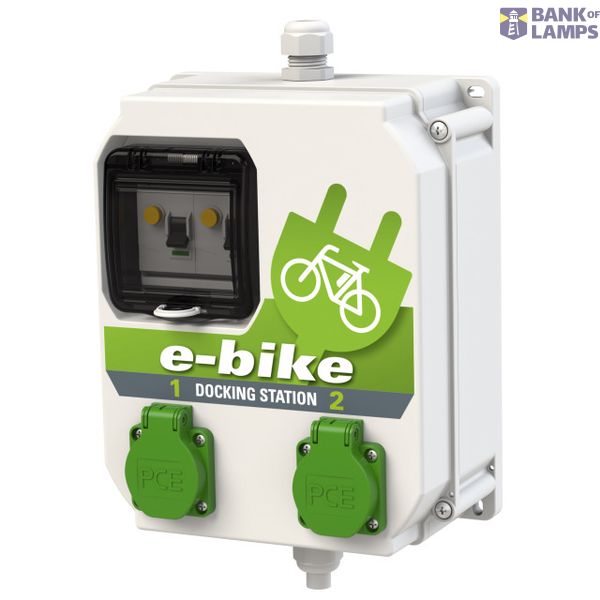

thermoplastic wall mounted distribution box model MURAU IP54
cable (e-bike DOCKINGSTATION) encluded
earthing pin plug 16A 2p+PE 230V IP44 Dual grounding system
1xM20 cable gland on top (cable diam.: 10-14mm PG16) grey
1xM20 cable gland with blind plugs grey from bottom
2xSK-sockets 16A 250V IP54 (green) fused with 2xMCB /RCD 6A 1p+N 30mA C TYP A
MCB and RCD are Eaton ÖVE / VDE branded
distribution box is ready wired on Vario-Connector 3poles 10qmm
cable (e-bike DOCKINGSTATION) encluded
earthing pin plug 16A 2p+PE 230V IP44 Dual grounding system
1xM20 cable gland on top (cable diam.: 10-14mm PG16) grey
1xM20 cable gland with blind plugs grey from bottom
2xSK-sockets 16A 250V IP54 (green) fused with 2xMCB /RCD 6A 1p+N 30mA C TYP A
MCB and RCD are Eaton ÖVE / VDE branded
distribution box is ready wired on Vario-Connector 3poles 10qmm
