Multifix BP - junction Box BP-201
In stock: No
Vendor stock: No
Minimal order quantity: 50
Price (excl. VAT):
3,21 €
Subtotal: 160,50 €
MOQ: 50
EAN: 3606480161247
MPN: IMT36315
Package: 1
Box: 50
Pallet: 1200
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | Multifix BP - junction Box BP-201 |
| Brand | Schneider Electric |
| Categories |
Flush Mounted Junction Boxes
|
| Harmonized System Code | 3925 9080 00 |
| Mounting method | Flush mounted (plaster) |
| Model | Single |
| Shape | Round |
| Equipped with | Other |
| Connectable | Yes |
| Degree of protection (IP) | IP30 |
| Provided with revolving ring | Yes |
| Degree of protection (NEMA) | 1 |
Packing details
| Packing level 1 | 3606480161247 |
| Packing level 2 | 3606480161244 |
| Packing level 3 | 3606480161247 |
Other Technical data
| Colour | Green |
| Width | 82 mm |
| Halogen free | Yes |
| Surface protection | Untreated |
| Diameter | 82 mm |
| Construction type | Cable junction box |
| Inner depth | 46 mm |
| Length | 130 mm |
| Sealable | No |
| Circuit integrity | None |
| Material | Plastic |
| Number of inlets | 7 |
| Mounting switching equipment | Screwing |
| For number of electric fittings | 1 |
| Luminaire hook mounting | No |
| Max. conductor cross section | 2.5 mm² |
| With screening | No |
| With nail lugs | Yes |
| With screws | Yes |
| Air tight | No |
| Depth | 48 mm |
| For tube diameter | 16/20 mm |
| Inlet from the rear | No |
| Pipe locking | No |
| Special application | None |
| Clamp position fixed | No |
| Number of poles of the clamp | 0 |
| Nozzle | Pipe socket |
| Housing feed-through by seal membrane | No |
| Housing feed-through by nozzle | Yes |
| Housing feed-through by step membrane | No |
| Pipe locking optional | No |
| Number of included spouts | 7 |
| Cover model | None |
| Housing feed-through by break-out opening | Yes |
| Transparent cover | No |
Downloads
Description

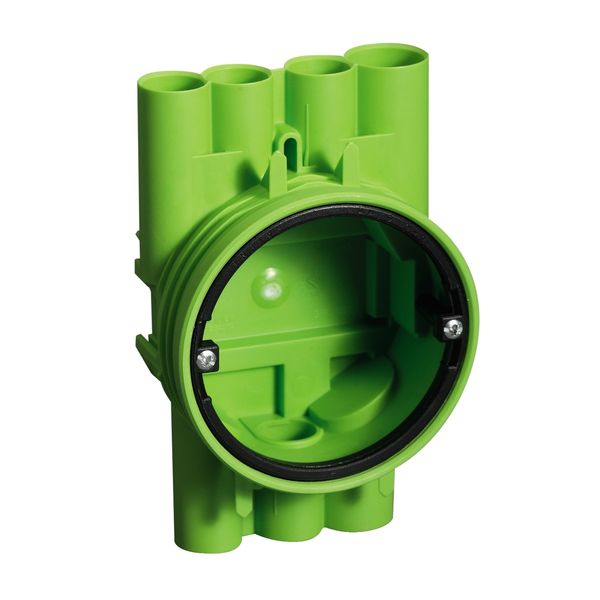

This 1 gang Multifix BP junction box is in color green. Its matching mounting box can be recessed into the surface of the wall with flush type. It has 2 and 5 flexible stubs. The junction box is made of PEHD (polyethylene high density), making it durable and resistant. This junction box is designed for double board, single board. This device is sold in set of 50. It is mercury free.
