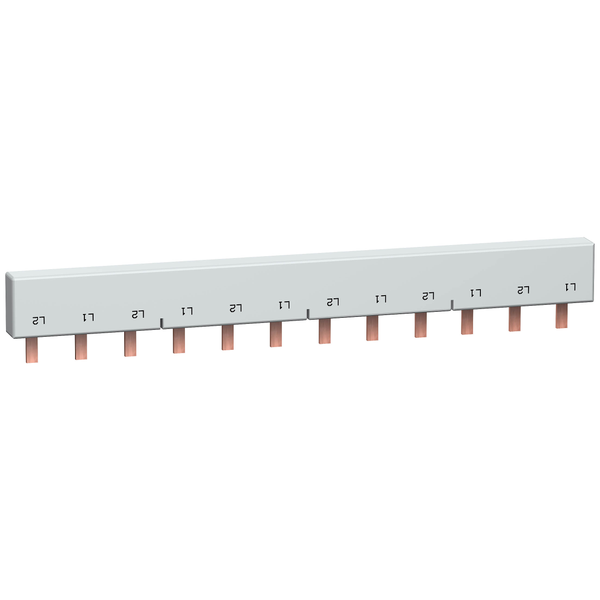

Multi9 - comb busbar - 1L - 18 mm pitch - 12 modules - 100A

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

45,82 €

This price is valid until 31.12.25

EAN: 3303430102854

MPN: 10285

Package: 1

Box: 72

Estimate delivery time at our warehouse (approx.): By request

Technical Information

Item condition	New
Manufacture name	Multi9 - comb busbar - 1L - 18 mm pitch - 12 modules - 100A
Brand	Schneider Electric
Categories	Busbar Systems and Accessories
Insulated	Yes
Rated permanent current Iu	63 A
Number of poles	1

Packing details

Packing level 1	3303430102854
Packing level 2	3303430102859

Other Technical data

Number of phases	1
Cross section	16 mm²
Length	216 mm
Conditioned rated short-circuit current Iq	0 kA
Rated surge voltage	0 kV
Type of electric connection	Pin
Rated short-time withstand current lcw	0 kA
Suitable for devices with auxiliary switch	No
Suitable for devices with N-conductor	No
Suitable for number of devices	12
Max. rated operation voltage Ue	480 V
Module width	18 mm

Description

This Multi9 product is a comb busbar 12 modules. It is dedicated to (Line) installations. The distribution type is 1L. It is insulated and uncuttable. It is a set of 1 device. It is suitable for 12 devices (1P). This comb busbar is compatible with Multi9 C60SP devices. The total number of modules of 18mm is 12. The Ue rated operational voltage is 277VAC (phase to neutral) and 480VAC (phase to phase). The Ui rated insulation voltage is 690VAC. Its width is 216mm. The color is light grey (RAL 7035). The pollution degree is 3. The resistance of the plastic to flames and to abnormal heat is 960°C within 30s.
