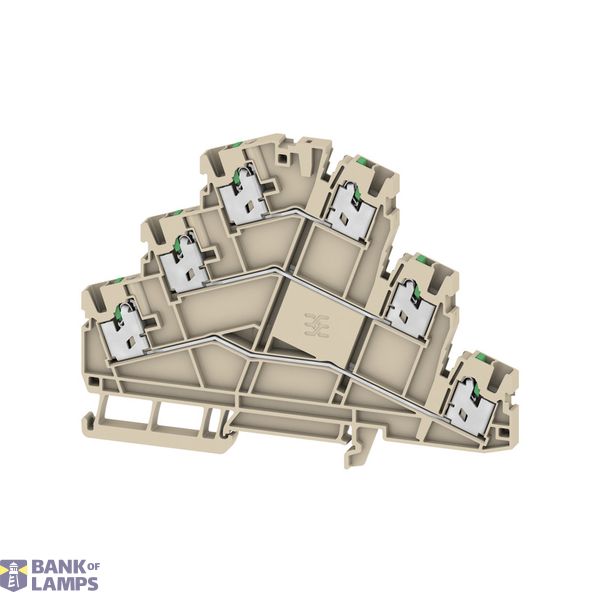

Multi-tier modular terminal, SNAP IN, dark beige, 2.5 mm², 800 V, Numb image 1
Weidmüller

Multi-tier modular terminal, SNAP IN, dark beige, 2.5 mm², 800 V, Numb

Order only
Price (excl. VAT):
Price by request
This price is valid while stock lasts
EAN: 4099986004948
MPN: 2902530000
Package: 1
Estimate delivery time to our warehouse: By request

Technical Information

Item condition New
Manufacture name Multi-tier modular terminal, SNAP IN, dark beige, 2.5 mm², 800 V, Numb
Brand Weidmüller
Categories DIN Rail Terminal Blocks
Country of origin* RO
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code 8536 9010 00
ETIM EC000897
Mounting method DIN rail (top hat rail) 35 mm
Rated voltage 800 V
Number of levels 3
Number of clamp positions per level 2
Connectable conductor cross section solid-core 0.34-2.5 mm²
Connectable conductor cross section fine-strand with cable end sleeve 0.34-2.5 mm²
Connectable conductor cross section fine-strand without cable end sleeve 0.34-4 mm²
Connectable conductor cross section multi-wired 0.34-2.5 mm²
Rated current In 22 A

Packing details

Packing level 1 4099986004948, 4099986004948

Other Technical data

Colour Beige
Width 5.1 mm
Height 116 mm
Depth 64.5 mm
Operating temperature -60-130 °C
Inflammability class of insulation material according to with UL94 V0
Closing plate required Yes
Internally connected stages No
Material insulation body Thermoplastic
Explosion-tested version 'Ex e' No

Description

Terminal block with several levels for connecting or joining conductors with permanently secure contact. Hardened steel withstands the mechanical forces, tin-coated copper ensures top conductivity. Space-saving design.
