Omron

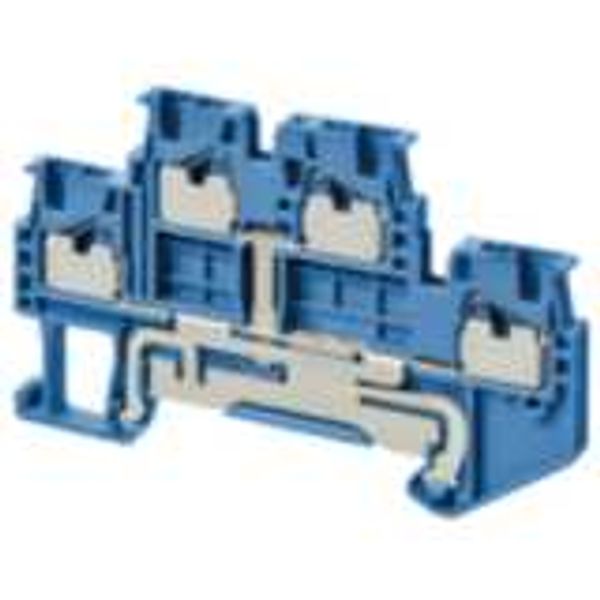

Multi-tier feed-through DIN rail terminal block with push-in plus conn XW5T0109B

Order only
Price (excl. VAT):
1,00 €
This price is valid until 24.12.25
EAN: 4548583796270
MPN: XW5T-P1.5-1.1-2BL
Package: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition New
Manufacture name Multi-tier feed-through DIN rail terminal block with push-in plus conn XW5T0109B
Brand Omron
Categories DIN Rail Terminal Blocks
Country of origin NL
Harmonized System Code 8536 9010 00
Mounting method DIN rail (top hat rail)/G-rail TH35/G32
Rated voltage 500 V
Type of electrical connection 1 Spring clamp connection
Type of electrical connection 2 Other
Number of levels 2
Number of clamp positions per level 1
Connectable conductor cross section solid-core 1.5 mm²
Connectable conductor cross section fine-strand with cable end sleeve 0.14-1 mm²
Connectable conductor cross section multi-wired 1 mm²
Rated current In 13.5 A

Packing details

Packing level 1 4548583796270, 4548583796270

Other Technical data

Colour Blue
Operating temperature -40-55 °C
Inflammability class of insulation material according to with UL94 V0
Closing plate required Yes
Internally connected stages No
Material insulation body Other
Explosion-tested version 'Ex e' No

Downloads

Product data sheet

Description

Multi-tier feed-through DIN rail terminal block with push-in plus connection for mounting on TS 35, nominal cross section 1 mm², color blue

Accessories

Short bar for terminal blocks 1 mm² push-in plus models, 2 poles, red XW5T0120C
Order only
Omron
Short bar for terminal blocks 1 mm² push-in plus models, 2 poles, red XW5T0120C
0,442 €
This price is valid until 24.12.25
EAN: 4548583796386
MPN: XW5S-P1.5-2RD
Package: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
Short bar for terminal blocks 1 mm² push-in plus models, 3 poles, red XW5T0121A
Order only
Omron
Short bar for terminal blocks 1 mm² push-in plus models, 3 poles, red XW5T0121A
0,56 €
This price is valid until 24.12.25
EAN: 4548583796393
MPN: XW5S-P1.5-3RD
Package: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
Short bar for terminal blocks 1 mm² push-in plus, 4 poles, red color XW5T0122M
Order only
Omron
Short bar for terminal blocks 1 mm² push-in plus, 4 poles, red color XW5T0122M
0,70 €
This price is valid until 24.12.25
EAN: 4548583796409
MPN: XW5S-P1.5-4RD
Package: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
Short bar for terminal blocks 1 mm² push-in plus models, 10 poles, red XW5T0124F
Order only
Omron
Short bar for terminal blocks 1 mm² push-in plus models, 10 poles, red XW5T0124F
2,52 €
This price is valid until 24.12.25
EAN: 4548583796423
MPN: XW5S-P1.5-10RD
Package: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
Short bar for terminal blocks 1 mm² push-in plus models, 2 poles, blue XW5T0135A
Order only
Omron
Short bar for terminal blocks 1 mm² push-in plus models, 2 poles, blue XW5T0135A
0,442 €
This price is valid until 24.12.25
EAN: 4548583796539
MPN: XW5S-P1.5-2BL
Package: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
Short bar for terminal blocks 1 mm² push-in plus models, 3 poles, blue XW5T0136M
Order only
Omron
Short bar for terminal blocks 1 mm² push-in plus models, 3 poles, blue XW5T0136M
0,56 €
This price is valid until 24.12.25
EAN: 4548583796546
MPN: XW5S-P1.5-3BL
Package: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
Short bar for terminal blocks 1 mm² push-in plus models, 4 poles, blue XW5T0137H
Order only
Omron
Short bar for terminal blocks 1 mm² push-in plus models, 4 poles, blue XW5T0137H
0,70 €
This price is valid until 24.12.25
EAN: 4548583796553
MPN: XW5S-P1.5-4BL
Package: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
Short bar for terminal blocks 1 mm² push-in plus models, 5 poles, blue XW5T0138F
Order only
Omron
Short bar for terminal blocks 1 mm² push-in plus models, 5 poles, blue XW5T0138F
1,05 €
This price is valid until 24.12.25
EAN: 4548583796560
MPN: XW5S-P1.5-5BL
Package: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
Short bar for terminal blocks 1 mm² push-in plus models, 10 poles, blu XW5T0139D
Order only
Omron
Short bar for terminal blocks 1 mm² push-in plus models, 10 poles, blu XW5T0139D
2,52 €
This price is valid until 24.12.25
EAN: 4548583796577
MPN: XW5S-P1.5-10BL
Package: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
End plate for multi-tier terminal blocks 1 mm² push-in plus models XW5T0166A
Order only
Omron
End plate for multi-tier terminal blocks 1 mm² push-in plus models XW5T0166A
0,195 €
This price is valid until 24.12.25
EAN: 4548583796843
MPN: XW5E-P1.5-1.1-2
Package: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
