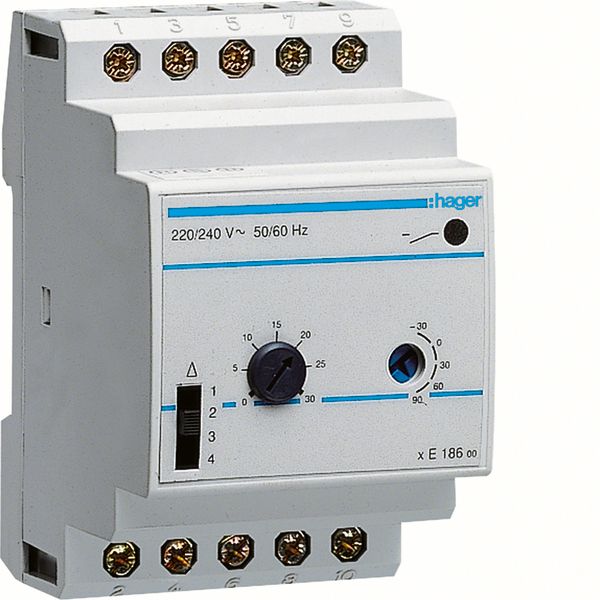

Multi-range thermostat
Order only
Discontinued
Price (excl. VAT):
198,82 €
per pcs
EAN: 3250612311866
MPN: EK186
Package: 1
Pallet: 1152
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | Multi-range thermostat |
| Brand | Hager |
| Categories |
Cabinet Cooling and Heating
|
| Model | Analogue |
| Rated frequency | 50-60 Hz |
| Nominal switching current at 250 V, potential free | 2 A |
| Nominal switching current at 230 V, not potential free | 2 A |
| Rated voltage | 230 V |
| Adjustment range comfort | 5-30 °C |
| Sensor type | Remote sensor |
Packing details
| Packing level 1 | 3250612311866, 3250612311866 |
| Packing level 2 | 3250612311866 |
| Packing level 3 | 3250612311866 |
Other Technical data
| Autonomy | 0 h |
| Number of memory locations | 0 |
| Number of channels | 1 |
| Weekly program | No |
| Contact type | Change-over contact |
| Width in number of modular spacings | 3 |
| 24 h program | No |
| Holiday program | No |
| Automatic switching summer-/winter time | No |
| Switching preselection | No |
| Number of basic programs standard | 0 |
| Operation mode switch | Yes |
| Input for time program | No |
| Adjustment range frost protection | -30-90 °C |
| Shortest temperature phase | 1 min |
| Text guidance in display | No |
| Degree of protection (IP) | IP40 |
| Assembly depth | 63 mm |
| Class of the temperature control | I |
| Standby power consumption (solstandby) | 1.5 W |
Description
Multi-range thermostat
