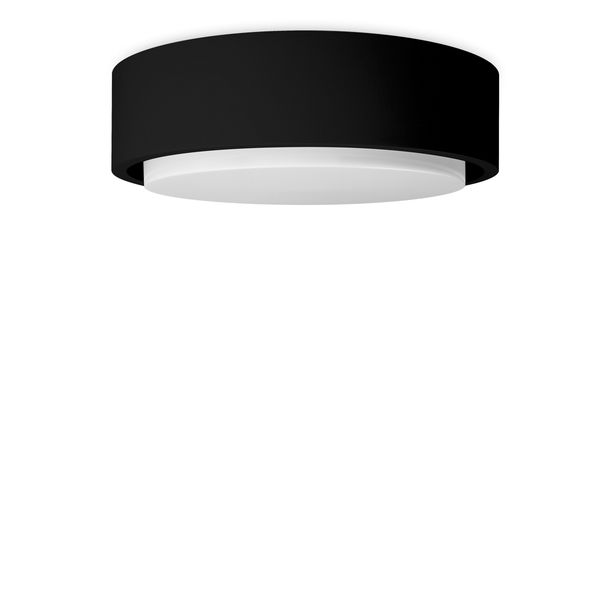

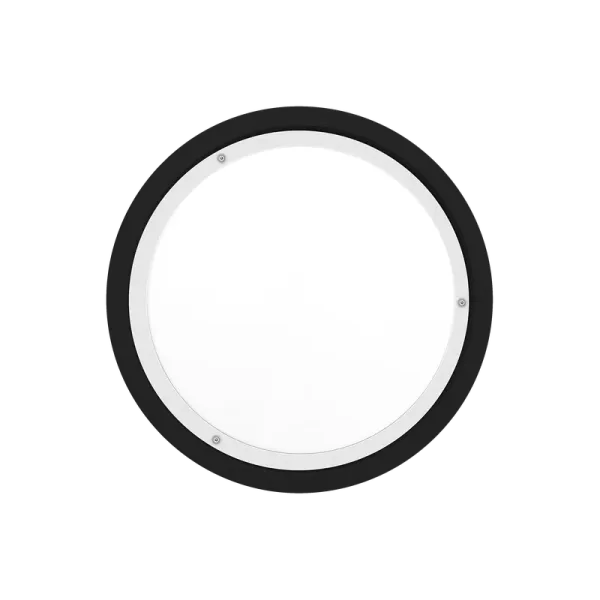

Multi+30 PC LED 16W 4000K Black
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
72,33 €
EAN: 8018367694413
MPN: 30416190101
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Multi+30 PC LED 16W 4000K Black |
| Brand | Performance in Lighting |
| Categories |
Wall and ceiling luminaires
Ceiling mounting lamps |
| Country of origin | IT |
| Harmonized System Code | 9405 1140 00 |
| Colour housing | Black |
| Colour rendering index CRI | 80-89 |

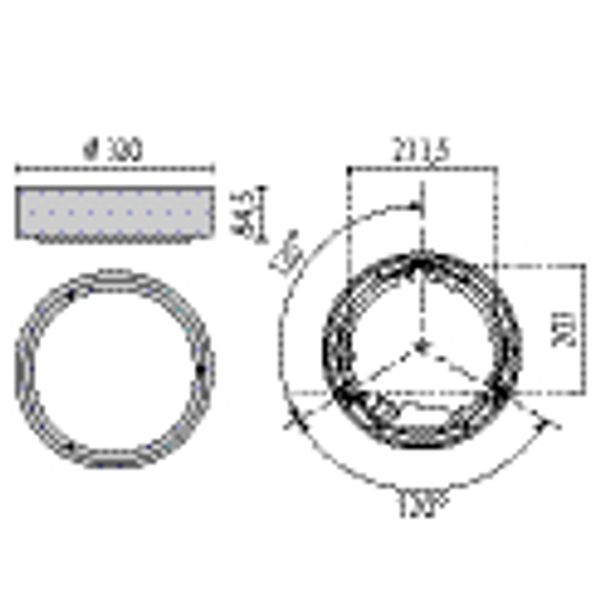

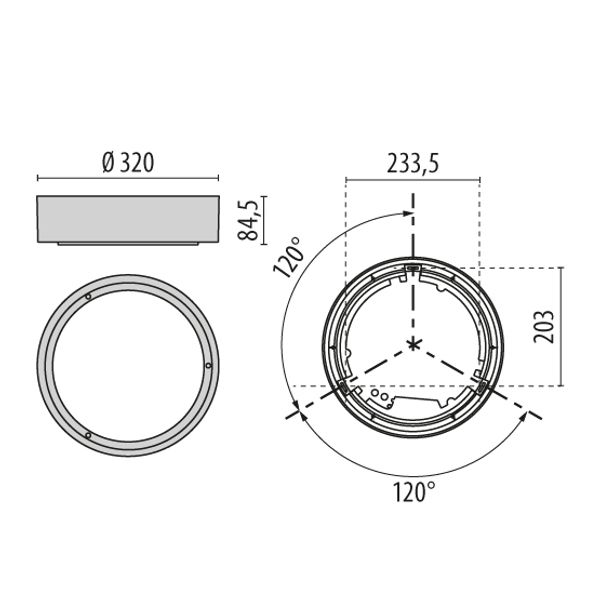

| Height/depth | 84.5 mm |
| Lamp type | LED not exchangeable |
| Impact strength | IK10 |
| Nominal voltage | 220 V |

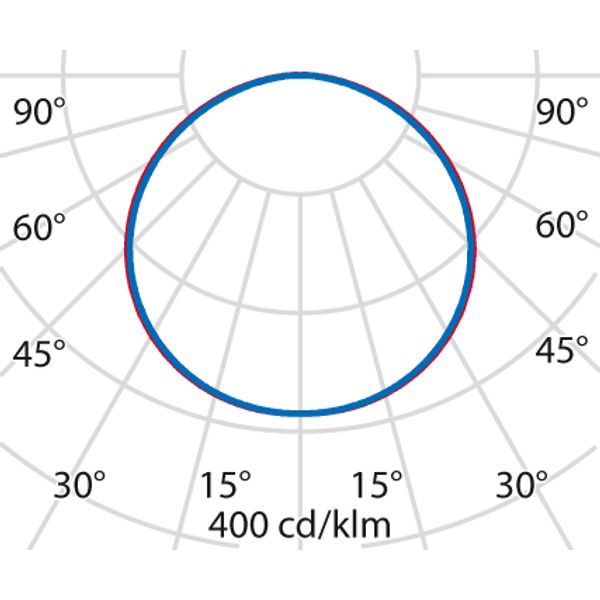

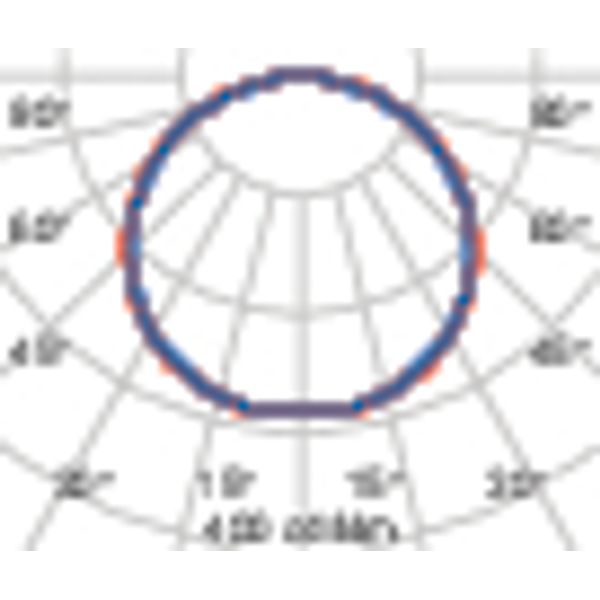

| Beam angle | Extreme wide beam >80° |
| Colour temperature | 4000 K |
| Max. system power | 16 W |
Packing details
| Packing level 1 | 8018367694413, 8018367694413 |
Other Technical data
| Protection class | II |
| Outer diameter | 320 mm |
| Lamp holder | Other |
| Conductor cross section | 2.5 mm² |
| Connection type | Push-in clamp |
| Voltage type | AC/DC |
| With movement sensor | No |
| Suitable for lamp power | 16 W |
| Type of grid | None |
| Type of control gear | LED operating device current-controlled |
| With light sensor | No |
| Suitable for suspended mounting | No |
| Number of poles | 2 |
| Housing material | Plastic |
| Suitable for light line configuration | No |
| Suitable for emergency lighting | No |
| Light outlet | Direct |
| Light sharing | Symmetric |
| Material cover | Plastic, opal |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Covering of the luminaire with thermally insulating material possible | No |
| Suitable for number of lamps | 1 |
| Suitable for built-in mounting | No |
| With control gear | Yes |
| Suitable for workplace according to EN 12464-1 | No |
| Suitable for surface mounting | No |
| Colour of light | White |
| With air slots | No |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Type of wiring | Ending |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Photobiological safety according to EN 62471 | RG1 |
| Rated ambient temperature according to IEC62722-2-1 | -20 °C |
| Filament test according to IEC 60695-2-11 | 750 °C - 30 s |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | Yes |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| Light distributor | Diffuser lens/optic/panel |
| Dimming DSI | No |
| Operation by Bluetooth | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Max. number of luminaires per miniature circuit breaker C16 | 85 |
| Max. number of luminaires per miniature circuit breaker B16 | 50 |
| Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq) | 96.6 % |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 95.4 % |
| Lumen maintenance at median useful life of 75,000 h at 25 °C ambient (tq) | 93.5 % |
| Dimming DALI-2 | No |
| Colour temperature adjustable | No |
| Luminous flux adjustable | Continuously variable |
| Beam angle adjustable | No |
| Exchangeable control gear | Yes |
| Suitable for ceiling mounting | Yes |
| Surface protection housing | Untreated |
Downloads
Description
Serie wand- en plafondarmaturen voor binnen en buiten, bestaande uit: Behuizing van technopolymeer. Afscherming van opaal vandalismebestendig polycarbonaat, groeidraad 960°C (EN 60695-2-11). Siliconenpakking. Vandaalbestendige sluitschroeven van Rvs. Armatuur voorbereid voor doorvoerverbinding. Klasse II. Dimbare versie 1 -10 V. Dimmen (DALI). De versie EM/3P is ontworpen als 3 uur nood- en continu verlichting. Voorbewerkte kabel/buis zij-invoermet een diameter van max. 20 mm. Binnen in het armatuur is een hyperfrequentie (HF) bewegingssensor ingebouwde werkt op een frequentie van 5,8 Ghz+/- 75 Mhz. De SMART versies zijn voorzien van een instelbare driver, met als doel energiebesparing; er wordt 100% output bereikt wanneer dit nodig is, voor 30% output wordt altijd gezorgd. De versies SMART HF zijn compleet met geïntegreerde High Frequency sensor die het 30%-100% van de output activeert bij waarneming van de aanwezigheid. De versies SMART DA beschikken over twee aansluitingen, waar de vraag om 100% van de output bestuurd wordt door een schakelaar of een sensor. SMD LED Metal-Core platine is kantelbaar waardoor men snel en eenvoudig kan monteren FUTURE-PROOF™.
