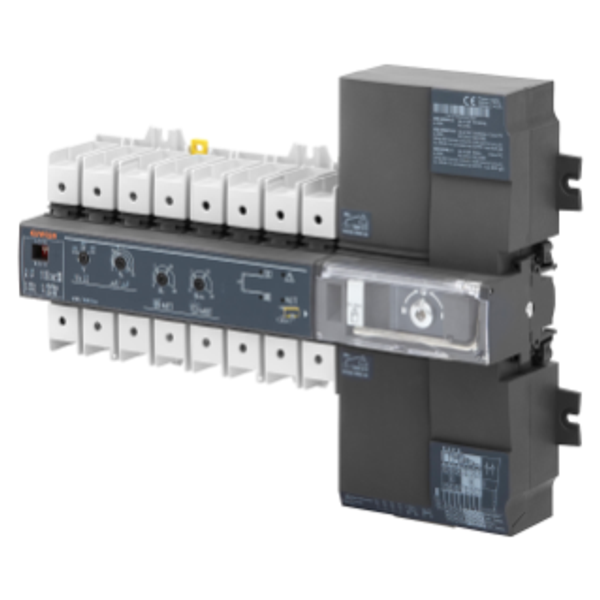

MSS 160A ATS - MONOBLOC AUTOMATIC SWITCHOVER SYSTEM WITH 3 POSITIONS - 160A 230V - 19 MODULES
Order only
Price (excl. VAT):
1 423,43 €
EAN: 8011564764637
MPN: GW97767
Package: 1
Pallet: 24
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | MSS 160A ATS - MONOBLOC AUTOMATIC SWITCHOVER SYSTEM WITH 3 POSITIONS - 160A 230V - 19 MODULES |
| Brand | GEWISS |
| Categories |
Off-load Switches
|
| Harmonized System Code | 8536 3030 00 |
| Model | Reverser |
| Rated operation power at AC-3, 400 V | 0 kW |
| Rated permanent current Iu | 160 A |
| Number of poles | 4 |
| Rated operation current Ie at AC-3, 400 V | 160 A |
| With zero (off) position | Yes |
| Degree of protection (IP), front side | IP20 |
| Type of control element | Other |
Packing details
| Packing level 1 | 8011564764637, 8011564764637 |
| Packing level 2 | 8011564764637 |
Other Technical data
| Number of auxiliary contacts as normally open contact | 0 |
| Number of auxiliary contacts as normally closed contact | 0 |
| Housing material | Plastic |
| With retraction in 0-position | No |
| Number of auxiliary contacts as change-over contact | 0 |
| Type of electrical connection of main circuit | Screw connection |
| Suitable for floor mounting | No |
| Suitable for front mounting | No |
| Suitable for distribution board installation | Yes |
| Suitable for intermediate mounting | No |
| Complete device in housing | No |
Downloads
Description
97 MSS Range Rotary switch disconnectors - The MSS rotary control switch disconnectors guarantee robustness and reliability in the control and isolation of circuits up to 630 A.The range consists of four different sizes depending on the current with high performance both in alternating current and in direct current.
